ADUC7033BSTZ-88 - Analog Devices

Description: Integrated, Precision Battery Sensor

Download ADUC7033BSTZ-88 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

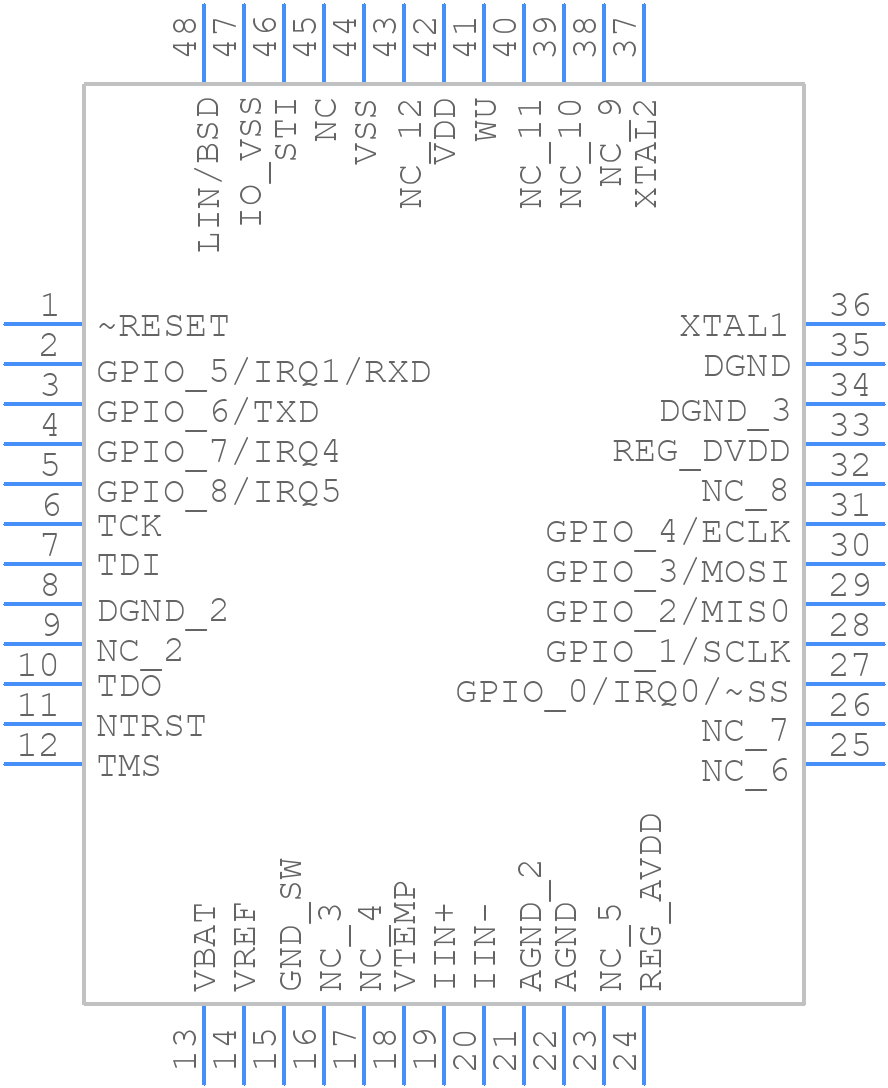

ADUC7033BSTZ-88 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUC7033BSTZ-88 - Analog Devices PCB footprint - Other - Other - QFP50P900X900X160-48N
click to zoom
3D Models
ADUC7033BSTZ-88 - Analog Devices - 3D model - Other - QFP50P900X900X160-48N
click to zoom

ADUC7033BSTZ-88 Details

  • Manufacturer Part Number:

    ADUC7033BSTZ-88

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    0.032 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    9

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    20.48 MHz

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

ADUC7033BSTZ-88 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADUC7033 datasheet, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise and interference.
  • The ADUC7033BSTZ-88 has an internal calibration mechanism, but it may require external calibration for high-accuracy applications. Analog Devices provides a calibration procedure in the datasheet, which involves applying known voltage and current inputs and adjusting the internal calibration registers accordingly.
  • The ADUC7033BSTZ-88 has an operating temperature range of -40°C to +125°C, but it can be extended to -55°C to +150°C with some performance degradation. However, it's essential to follow the recommended thermal management guidelines to ensure reliable operation.
  • The ADUC7033BSTZ-88 is designed to operate in harsh environments, including high-vibration applications. However, it's crucial to follow proper mounting and packaging guidelines to ensure the device's reliability and performance.
  • The ADUC7033BSTZ-88 has a SPI-compatible interface, which can be easily interfaced with most microcontrollers or FPGAs. Analog Devices provides example code and interface guidelines in the datasheet and application notes to facilitate integration.
