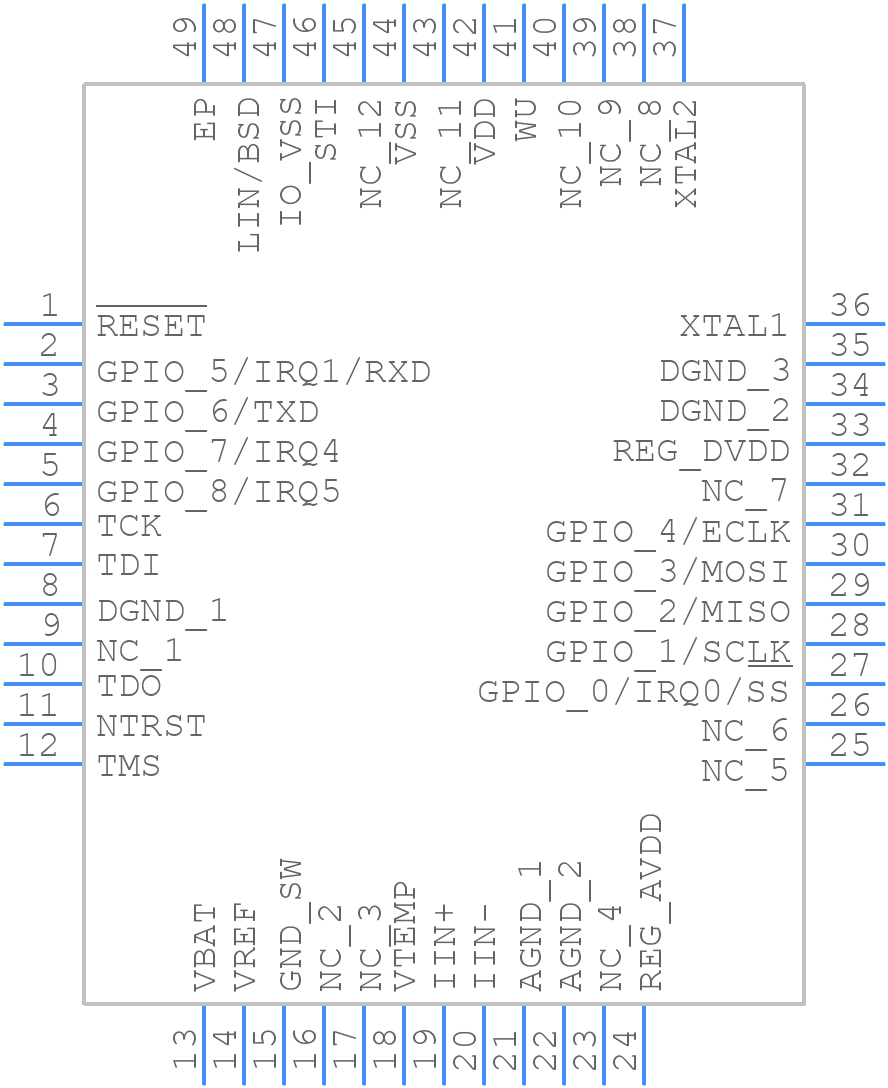

ADUC7036BCPZ - Analog Devices

ADUC7036BCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADUC7036BCPZ?
  A good PCB layout for the ADUC7036BCPZ involves separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling between analog and digital signals. A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
• How do I ensure the accuracy of the ADC conversion results?
  To ensure the accuracy of the ADC conversion results, it's crucial to follow proper PCB layout and design guidelines, use a high-quality voltage reference, and minimize noise and interference. Additionally, calibration and trimming of the ADC can be performed to improve accuracy. It's also important to consider the temperature range and its impact on ADC performance.
• What is the maximum clock frequency that can be used with the ADUC7036BCPZ?
  The maximum clock frequency that can be used with the ADUC7036BCPZ is 26 MHz. However, the actual clock frequency used may be limited by the specific application and the required ADC conversion rate. It's essential to consult the datasheet and application notes for specific guidance on clock frequency selection.
• Can the ADUC7036BCPZ be used in a multi-drop configuration?
  Yes, the ADUC7036BCPZ can be used in a multi-drop configuration. However, it's essential to ensure that each device has a unique address and that the bus capacitance and pull-up resistors are properly selected to ensure reliable communication. Additionally, the maximum number of devices on the bus should not exceed the recommended limit to avoid signal degradation.
• How do I troubleshoot issues with the ADUC7036BCPZ?
  To troubleshoot issues with the ADUC7036BCPZ, start by consulting the datasheet and application notes to ensure that the device is properly configured and used. Use oscilloscopes and logic analyzers to debug the digital signals and verify that the device is receiving the correct clock and data signals. Additionally, check the power supply and voltage reference to ensure they are within the recommended specifications.
