ADUC842BS62-5 - Analog Devices

Description: MicroConverter 12-Bit ADCs and DACs with Embedded High Speed 62 kB Flash MCU

Download ADUC842BS62-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADUC842BS62-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

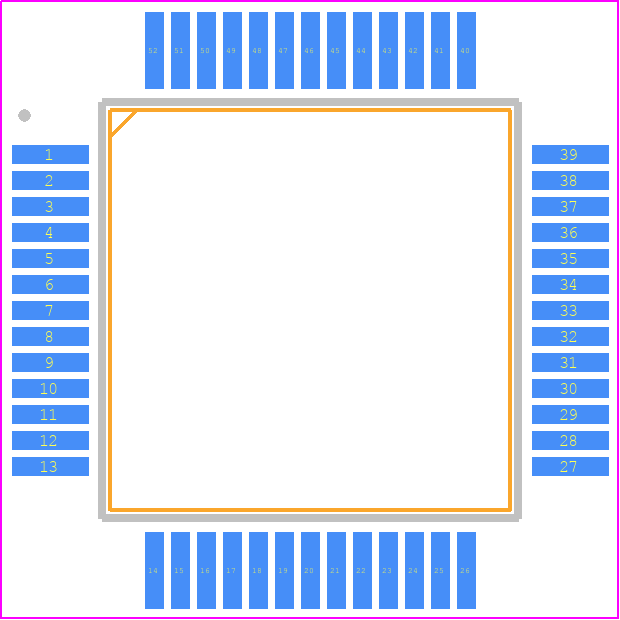

ADUC842BS62-5 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - S-52-2
click to zoom
3D Models
ADUC842BS62-5 - Analog Devices - 3D model - Quad Flat Packages - S-52-2
click to zoom

ADUC842BS62-5 Details

  • Manufacturer Part Number:

    ADUC842BS62-5

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    PLASTIC, MO-112AC1, MQFP-52

  • Pin Count:

    52

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 3V SUPPLY @ 8.35 MHZ

  • Address Bus Width:

    24

  • Bit Size:

    8

  • Clock Frequency-Max:

    0.032 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e0

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    32

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.45 mm

  • Speed:

    16.78 MHz

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ADUC842BS62-5 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in their application note AN-0971, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ADUC842BS62-5 requires calibration for accurate voltage and current measurements. Analog Devices provides a calibration procedure in their application note AN-0972, which involves applying known voltage and current inputs and adjusting the device's internal registers accordingly.
  • The ADUC842BS62-5 is rated for operation from -40°C to +125°C, but the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
  • The ADUC842BS62-5 is designed to operate in industrial environments, but it's still important to ensure that the device is properly mounted and secured to prevent damage from vibration. Analog Devices recommends following their guidelines for mechanical design and assembly to ensure reliable operation in high-vibration environments.
  • Analog Devices provides a troubleshooting guide in their application note AN-0973, which covers common issues and their solutions, including incorrect readings, communication errors, and power-on reset issues.
