ADUC843BSZ62-5 - Analog Devices

ADUC843BSZ62-5 Details

• Manufacturer Part Number:

  ADUC843BSZ62-5

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

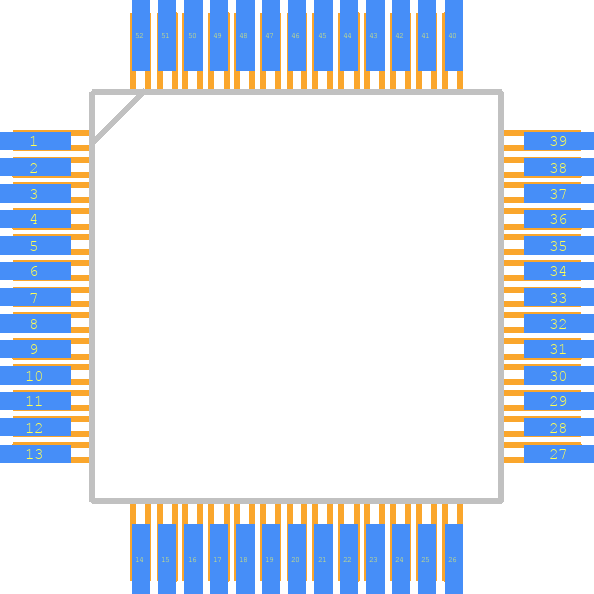

• Part Package Code:

  QFP

• Package Description:

  MQFP-52

• Pin Count:

  52

• Manufacturer Package Code:

  S-52-2

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  8

• Clock Frequency-Max:

  0.032 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G52

• JESD-609 Code:

  e3

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  32

• Number of Terminals:

  52

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.45 mm

• Speed:

  16.78 MHz

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
