ADUC847BSZ8-3 - Analog Devices

Description: Precision Analog Microcontroller

Download ADUC847BSZ8-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADUC847BSZ8-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

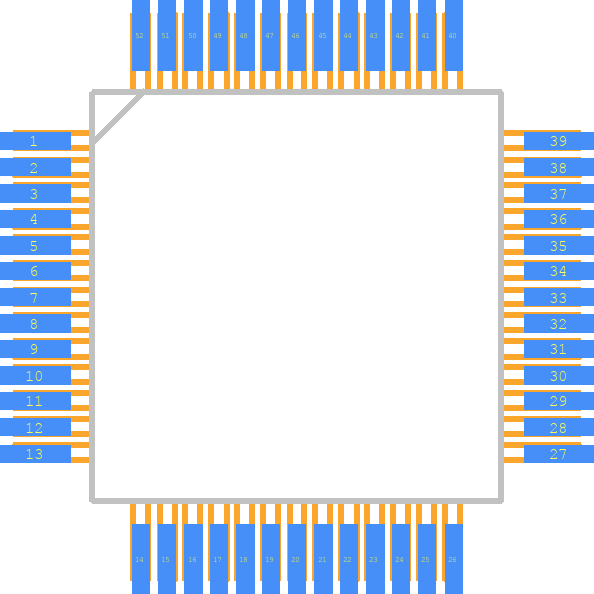

ADUC847BSZ8-3 - Analog Devices PCB footprint - Other - Other - QFP65P1400X1400X245-52N
click to zoom
3D Models
ADUC847BSZ8-3 - Analog Devices - 3D model - Other - QFP65P1400X1400X245-52N
click to zoom

ADUC847BSZ8-3 Details

  • Manufacturer Part Number:

    ADUC847BSZ8-3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    14 X 14 MM, LEAD FREE, PLASTIC, MO-112-AC-1, MQFP-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    S-52-2

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    8

  • Clock Frequency-Max:

    0.032 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    32

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.45 mm

  • Speed:

    12.58 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ADUC847BSZ8-3 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in their application note AN-0971, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ADUC847BSZ has an internal calibration mechanism, but it may require additional calibration for specific applications. Analog Devices provides a calibration procedure in their application note AN-0972, which includes steps for calibrating the device for voltage and temperature measurements.
  • The maximum allowed voltage on the input pins of the ADUC847BSZ is 5.5V, which is the absolute maximum rating. However, the recommended operating voltage range is 2.7V to 5.5V to ensure accurate measurements and prevent damage to the device.
  • The ADUC847BSZ is rated for operation up to 125°C, but it may require additional thermal management and derating for high-temperature applications. Analog Devices provides thermal management guidelines in their application note AN-0971 to ensure reliable operation in high-temperature environments.
  • The ADUC847BSZ has a serial interface (SPI or I2C) that can be easily interfaced with a microcontroller or FPGA. Analog Devices provides example code and interface guidelines in their application notes and evaluation board documentation to help with the interface design.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADUC847BSZ8-3 Overview

Use the download button to access the ADUC847BSZ8-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUC8, or try a keyword search, such as Microcontrollers
