ADUC848BS32-5 - Analog Devices

Description: IC, MICROCONTROLLER ,MQFP-52

Download ADUC848BS32-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADUC848BS32-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

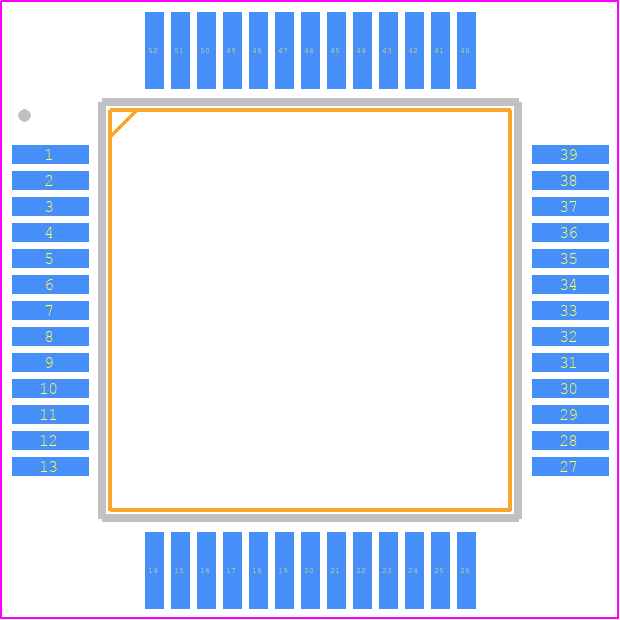

ADUC848BS32-5 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (S-52-2)-+-++
click to zoom
3D Models
ADUC848BS32-5 - Analog Devices - 3D model - Quad Flat Packages - (S-52-2)-+-++
click to zoom

ADUC848BS32-5 Details

  • Manufacturer Part Number:

    ADUC848BS32-5

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    14 X 14 MM, PLASTIC, MO-112-AC-1, MQFP-52

  • Pin Count:

    52

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 2.85 V MINIMUM SUPPLY

  • Address Bus Width:

    24

  • Bit Size:

    8

  • Clock Frequency-Max:

    0.032 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e0

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    32

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.45 mm

  • Speed:

    12.58 MHz

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ADUC848BS32-5 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in their application note AN-0971, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ADUC848BS32-5 requires calibration for accurate voltage and current measurements. Analog Devices provides a calibration procedure in their application note AN-0972, which involves applying known voltage and current inputs and adjusting the device's internal registers accordingly.
  • The ADUC848BS32-5 is rated for operation over a temperature range of -40°C to +125°C, but the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
  • Yes, the ADUC848BS32-5 can be used in a multi-channel configuration by connecting multiple devices in a daisy-chain or parallel configuration. However, this requires careful consideration of the device's addressing, data transfer, and synchronization mechanisms.
  • The typical power consumption of the ADUC848BS32-5 is around 15mA at 3.3V supply voltage, but this can vary depending on the device's operating mode, sampling rate, and other factors. It's recommended to consult the datasheet and application notes for more detailed power consumption information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUC848BS32-5 Overview

Use the download button to access the ADUC848BS32-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUC8, or try a keyword search, such as Microcontrollers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
