ADUCM342WFSBCPZ-RL - Analog Devices

Description: Battery Management Automotive Battery Monitor Gen3.1 (128KB

Download ADUCM342WFSBCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

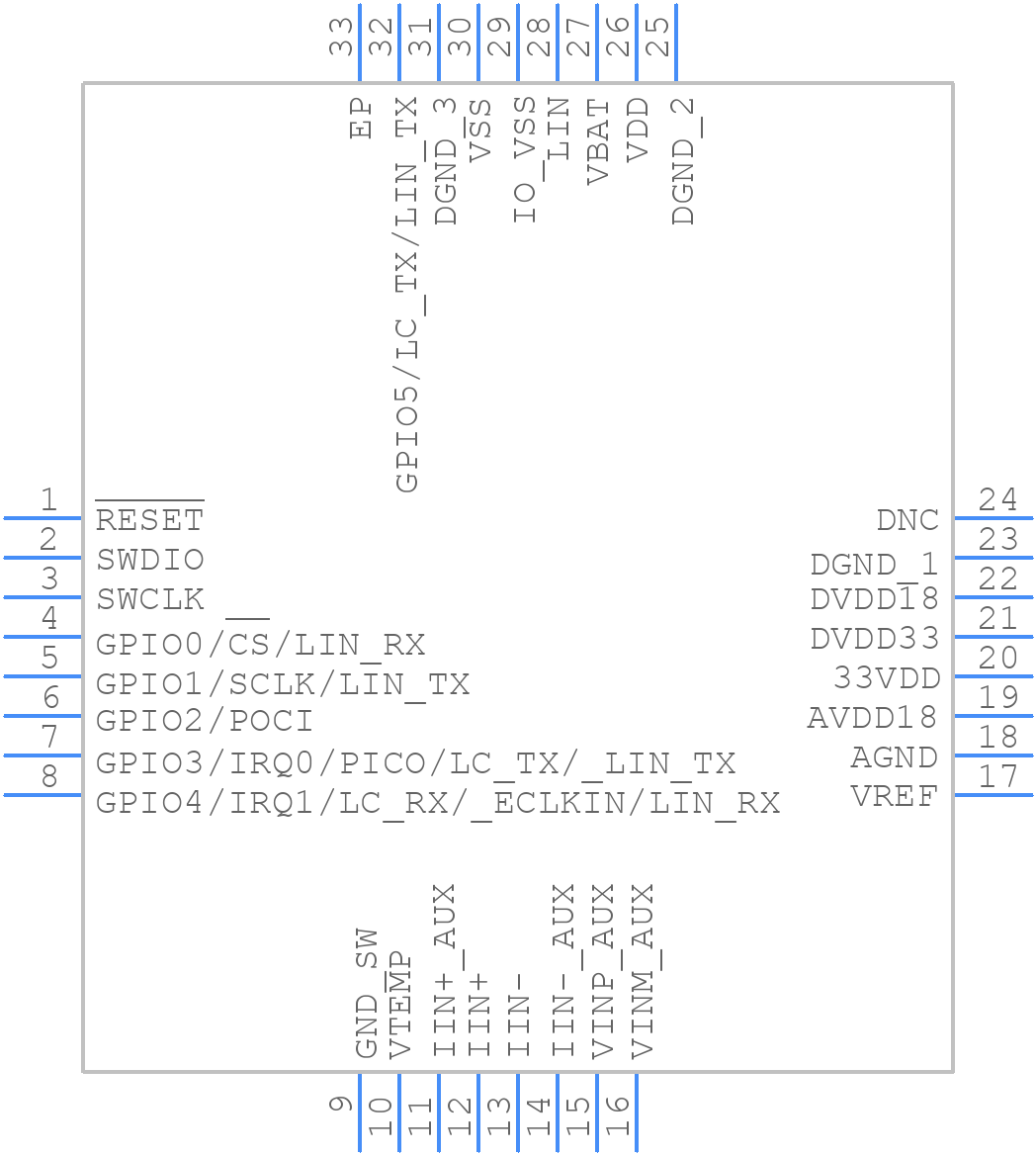

Symbol
ADUCM342WFSBCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUCM342WFSBCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADUCM342WFSBCPZ-RL
click to zoom
3D Models
ADUCM342WFSBCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - ADUCM342WFSBCPZ-RL
click to zoom

ADUCM342WFSBCPZ-RL Details

  • Manufacturer Part Number:

    ADUCM342WFSBCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2023-03-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    1.2 V

  • Analog Input Voltage-Min:

    -1.2 V

  • Conversion Time-Max:

    250000 µs

  • Converter Type:

    DATA ACQUISITION DEVICE

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.008%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.008 MHz

  • Screening Level:

    AEC-Q100, ISO 26262 ASIL-C

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Nom:

    1.88 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADUCM342WFSBCPZ-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in the ADUCM342 Hardware Design Guide (UG-1289). It's essential to follow these guidelines to ensure proper thermal performance and to minimize noise and EMI.
  • The ADUCM342's clocking and timing can be configured using the Analog Devices' ADUCM342 Software Framework, which provides a set of APIs and examples for clock configuration, PLL setup, and timer initialization. Refer to the ADUCM342 Software Framework User Guide (UG-1290) for more information.
  • The ADUCM342 is rated for operation in an ambient temperature range of -40°C to +85°C. However, the device's performance and accuracy may degrade at higher temperatures. It's essential to ensure proper thermal management and cooling to maintain optimal performance.
  • Yes, the ADUCM342 can be used with third-party RTOS or operating systems. However, Analog Devices provides a set of software drivers and examples for the FreeRTOS operating system. Porting the drivers to other RTOS or operating systems may require additional development and testing.
  • Analog Devices provides a set of debugging tools and techniques, including the ADUCM342 Debug Guide (UG-1291), which covers topics such as serial wire debug, printf() debugging, and error handling. Additionally, the ADUCM342 Software Framework provides a set of debug APIs and examples to help troubleshoot issues.
