ADUCM362BCPZ128RL7 - Analog Devices

Description: Low Power, Precision Analog Microcontroller with Dual Sigma-Delta ADCs, ARM Cortex-M3

Download ADUCM362BCPZ128RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

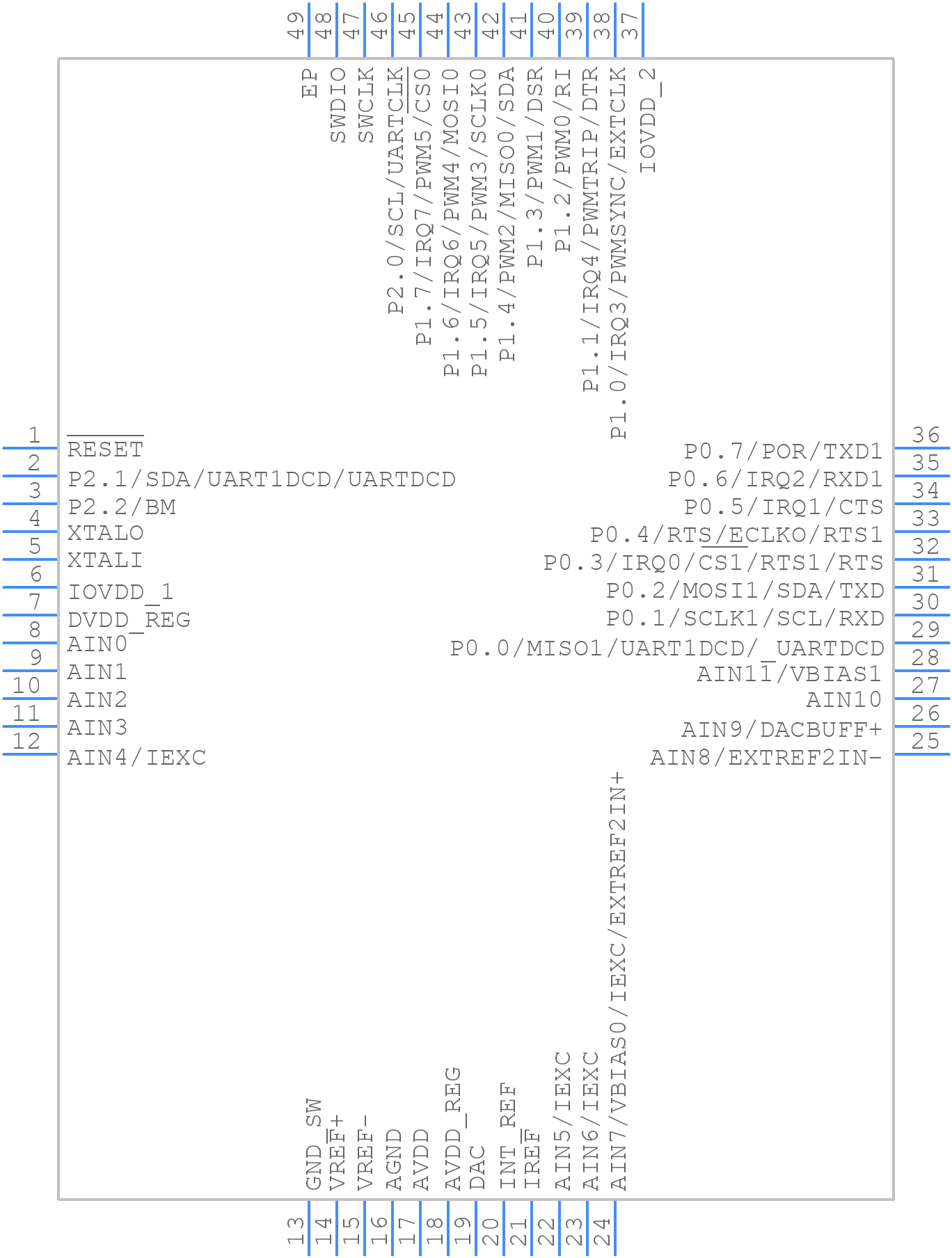

ADUCM362BCPZ128RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUCM362BCPZ128RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-4
click to zoom
3D Models
ADUCM362BCPZ128RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-4
click to zoom

ADUCM362BCPZ128RL7 Details

  • Manufacturer Part Number:

    ADUCM362BCPZ128RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Has ADC:

    YES

  • Additional Feature:

    DUAL 24-BIT ADCS

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    19

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    16384

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.8 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

ADUCM362BCPZ128RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide for the ADUCM362BCPZ128RL7 in the device's evaluation board documentation. It's essential to follow this guide to ensure proper thermal management, noise reduction, and signal integrity.
  • To optimize power consumption, use the device's power modes (e.g., sleep, hibernate) and adjust the clock frequency according to your application's requirements. Additionally, consider using the device's built-in power gating features and optimizing your firmware to minimize power-hungry operations.
  • The ADUCM362BCPZ128RL7 is rated for operation from -40°C to +125°C. However, it's essential to consider the device's thermal management and ensure proper heat dissipation to maintain reliability and performance.
  • The ADUCM362BCPZ128RL7 is not certified for safety-critical applications. If you need a safety-certified device, consider using a different part from Analog Devices or another manufacturer that meets the required safety standards (e.g., IEC 61508, ISO 26262).
  • To ensure EMC, follow proper PCB design and layout practices, use shielding and filtering techniques, and consider using a metal shield or enclosure for the device. Additionally, perform EMC testing and certification according to relevant standards (e.g., IEC 61000-4-x).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUCM362BCPZ128RL7 Overview

Use the download button to access the ADUCM362BCPZ128RL7 schematic symbol, PCB footprint, and 3D model.
