ADUCM362BCPZ256RL7 - Analog Devices

Description: Low Power, Precision Analog Microcontroller with Dual Sigma-Delta ADCs, ARM Cortex-M3

Download ADUCM362BCPZ256RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

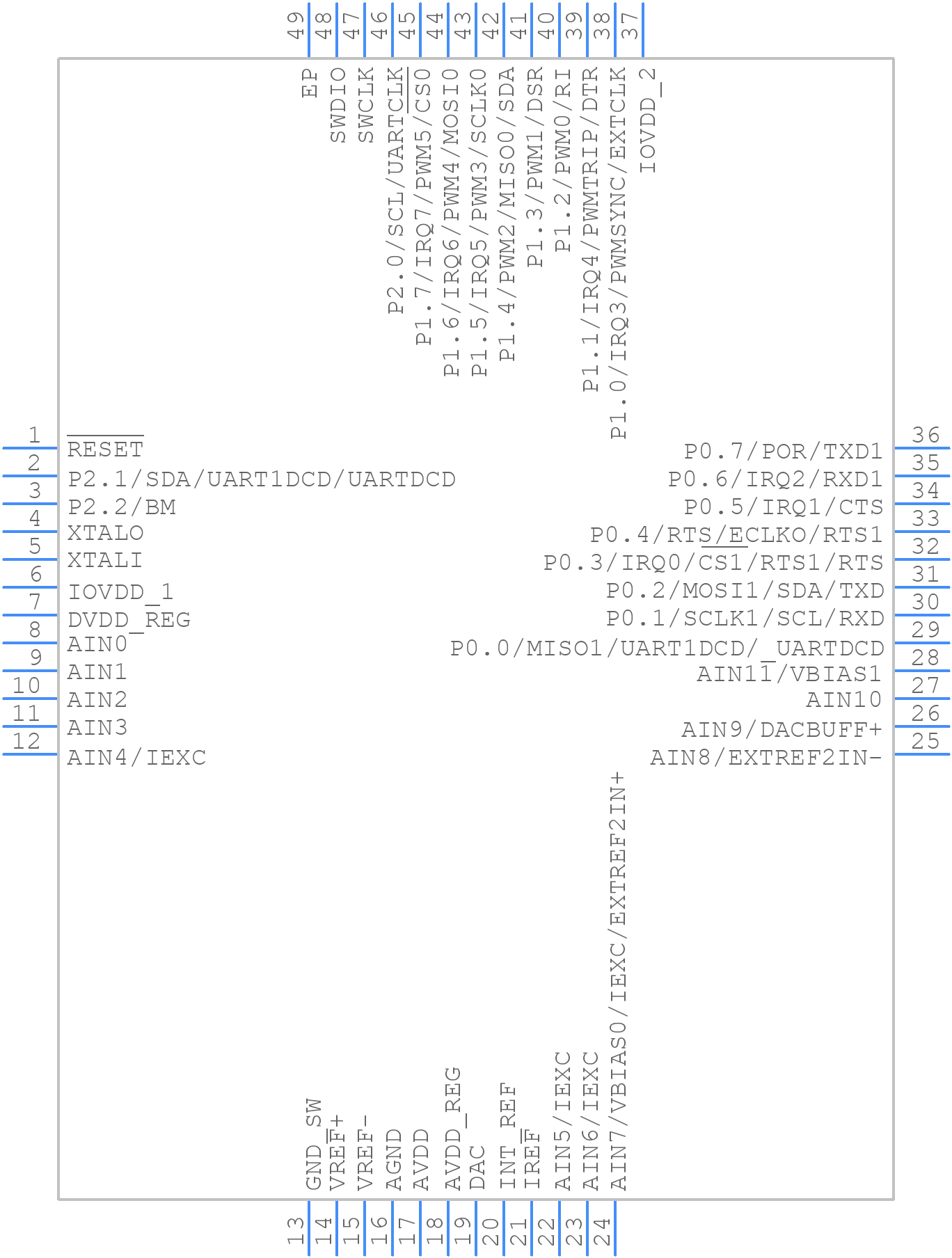

ADUCM362BCPZ256RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUCM362BCPZ256RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-4
click to zoom
3D Models
ADUCM362BCPZ256RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-4
click to zoom

ADUCM362BCPZ256RL7 Details

  • Manufacturer Part Number:

    ADUCM362BCPZ256RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Has ADC:

    YES

  • Additional Feature:

    DUAL 24-BIT ADCS

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    19

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    24576

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.8 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

ADUCM362BCPZ256RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide for the ADUCM362BCPZ256RL7 in the device's evaluation board documentation. It's essential to follow this guide to ensure optimal performance, especially for high-frequency signals and analog-to-digital converter (ADC) channels.
  • To configure the ADUCM362BCPZ256RL7 for low-power operation, refer to the device's datasheet and programming guide. You can adjust the clock frequency, disable unused peripherals, and use the device's power-saving modes (e.g., sleep mode) to minimize power consumption.
  • The ADUCM362BCPZ256RL7 is rated for operation in ambient temperatures ranging from -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in your design.
  • The ADUCM362BCPZ256RL7 is not specifically designed for safety-critical applications. However, Analog Devices provides functional safety documentation and failure modes, effects, and diagnostic analysis (FMEDA) reports for the device. You should consult with Analog Devices and perform a thorough safety analysis to determine if the device is suitable for your specific safety-critical application.
  • To ensure EMC with the ADUCM362BCPZ256RL7, follow proper PCB design and layout practices, use shielding and filtering techniques, and implement electromagnetic interference (EMI) mitigation strategies. You should also consult the device's datasheet and application notes for specific EMC guidelines.
