ADUM1241ARSZ-RL7 - Analog Devices

Description: Micropower, Dual-Channel Digital Isolators, Default High (1/1 Channel Directionality)

Download ADUM1241ARSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

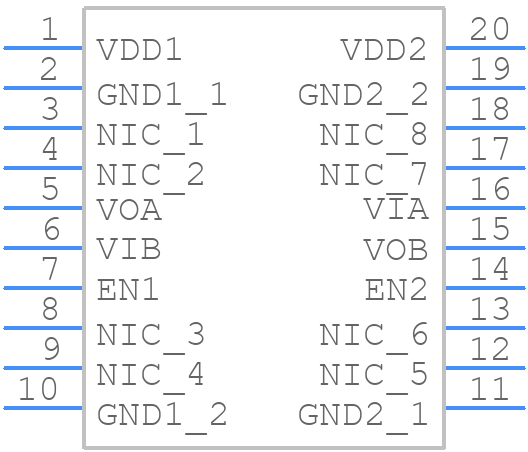

ADUM1241ARSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM1241ARSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADUM1241ARSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADUM1241ARSZ-RL7 Details

  • Manufacturer Part Number:

    ADUM1241ARSZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

ADUM1241ARSZ-RL7 Frequently Asked Questions (FAQs)

  • The ADUM1241ARSZ-RL7 can support data rates up to 25 Mbps, making it suitable for high-speed digital isolation applications.
  • The ADUM1241ARSZ-RL7 has a high common-mode transient immunity of 50 kV/μs, which helps to ensure reliable operation in noisy environments.
  • The typical propagation delay of the ADUM1241ARSZ-RL7 is around 10 ns, which is relatively low and suitable for high-speed applications.
  • Yes, the ADUM1241ARSZ-RL7 is designed to operate in harsh industrial environments, with an operating temperature range of -40°C to +125°C and a high level of immunity to electromagnetic interference (EMI).
  • The ADUM1241ARSZ-RL7 has a high power supply rejection ratio (PSRR) of 80 dB, which helps to ensure that the device operates reliably even with noisy or varying power supplies.
