ADUM130E1BRWZ - Analog Devices

Description: Analog Devices ADUM130E1BRWZ PCB SMT 3-channel Digital Isolator, 3750 Vrms, 16-Pin SOIC

Download ADUM130E1BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

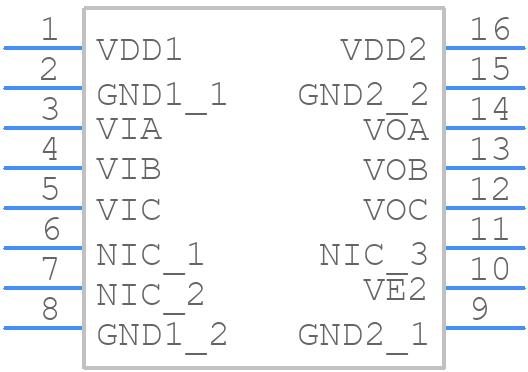

ADUM130E1BRWZ - Analog Devices - PCB symbol
