ADUM130E1BRZ - Analog Devices

Description: Analog Devices ADUM130E1BRZ PCB SMT 3-channel Digital Isolator, 3 kVrms, 16-Pin SOIC N

Download ADUM130E1BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

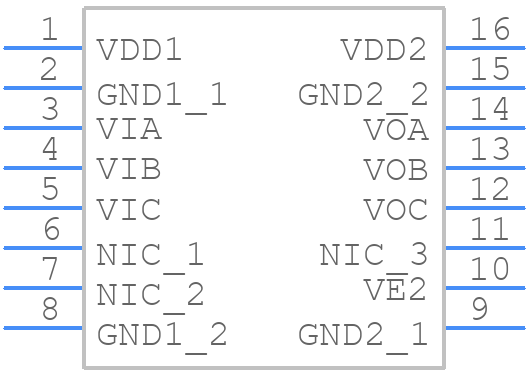

ADUM130E1BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM130E1BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADUM130E1BRZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADUM130E1BRZ Details

  • Manufacturer Part Number:

    ADUM130E1BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADUM130E1BRZ Frequently Asked Questions (FAQs)

  • The ADUM130E1BRZ can operate over a temperature range of -40°C to +125°C.
  • Yes, the ADUM130E1BRZ is designed for high-speed data transmission up to 150 Mbps and is suitable for applications such as USB, HDMI, and Ethernet.
  • To ensure reliable operation in noisy environments, it is recommended to use proper PCB layout techniques, such as separating the digital and analog grounds, using shielding, and minimizing loop areas. Additionally, the ADUM130E1BRZ has built-in EMI filters and common-mode rejection to help reduce noise susceptibility.
  • Yes, the ADUM130E1BRZ can be used for isolated power supplies, but it is essential to follow proper design and layout guidelines to ensure safe and reliable operation. The device is certified to UL1577 and IEC60601-1 standards for reinforced isolation.
  • To troubleshoot issues with the ADUM130E1BRZ, start by checking the power supply voltages, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to verify signal waveforms and timing. Consult the datasheet and application notes for guidance on specific issues.
