ADUM161N1BRZ-RL7 - Analog Devices

Description: Digital Isolator CMOS 6-CH 150Mbps 16-Pin SOIC N T/R

Download ADUM161N1BRZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

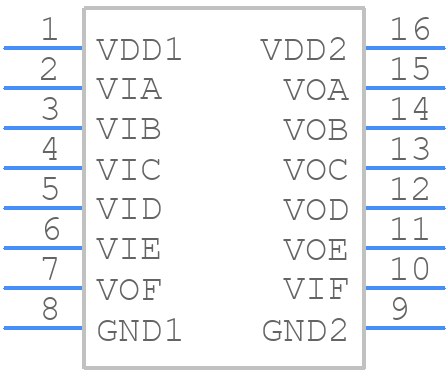

ADUM161N1BRZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM161N1BRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_N] Narrow Body
click to zoom
3D Models
ADUM161N1BRZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_N] Narrow Body
click to zoom

ADUM161N1BRZ-RL7 Details

  • Manufacturer Part Number:

    ADUM161N1BRZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADUM161N1BRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM161N1BRZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid running high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM161N1BRZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding excessive power dissipation. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • Common failure modes of the ADUM161N1BRZ-RL7 include overvoltage, overcurrent, and excessive temperature. To mitigate these failure modes, it's essential to follow proper design and layout practices, such as using voltage regulators, current limiters, and thermal protection circuits. Additionally, the device should be operated within its specified ratings and parameters.
  • To troubleshoot issues with the ADUM161N1BRZ-RL7, start by verifying the power supply and input/output connections. Check for proper voltage levels, signal integrity, and correct pin assignments. Use oscilloscopes or logic analyzers to monitor signal waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the ADUM161N1BRZ-RL7 can be used in safety-critical applications, but it's essential to follow proper design and verification practices to ensure the device meets the required safety standards. This includes performing thorough risk assessments, implementing redundant safety mechanisms, and conducting rigorous testing and validation. Consult the datasheet and relevant safety standards (e.g., IEC 61508) for guidance.
