ADUM162N1BRZ-RL7 - Analog Devices

Description: Robust 3.0 kV rms Six Channel Digital Isolators w/ Fail-Safe & 2 Reverse Channels

Download ADUM162N1BRZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

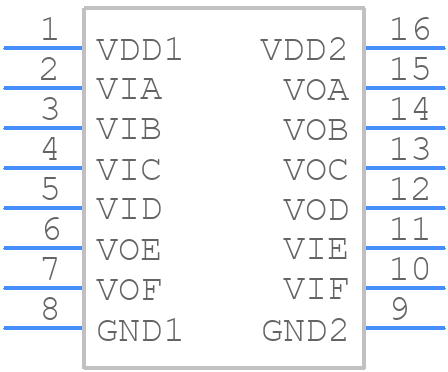

ADUM162N1BRZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM162N1BRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADUM162N1BRZ-RL7 - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADUM162N1BRZ-RL7 Details

  • Manufacturer Part Number:

    ADUM162N1BRZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADUM162N1BRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM162N1BRZ-RL7 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM162N1BRZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
  • The ADUM162N1BRZ-RL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's also recommended to use ESD-protective packaging and to ground all equipment and personnel before handling the device.
  • Yes, the ADUM162N1BRZ-RL7 can be used in redundant or fault-tolerant systems. However, it's essential to ensure that the device is properly configured and that the system is designed to handle the failure of one or more devices.
  • To troubleshoot issues with the ADUM162N1BRZ-RL7, start by checking the power supply and signal connections, then verify that the device is properly configured and that the input and output signals are within the specified ranges. If the issue persists, consult the datasheet and application notes or contact Analog Devices Inc. support.
