ADUM2251WARWZ-RL - Analog Devices

Description: Hot-Swappable Dual I2C? Isolators, 5 kV

Download ADUM2251WARWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

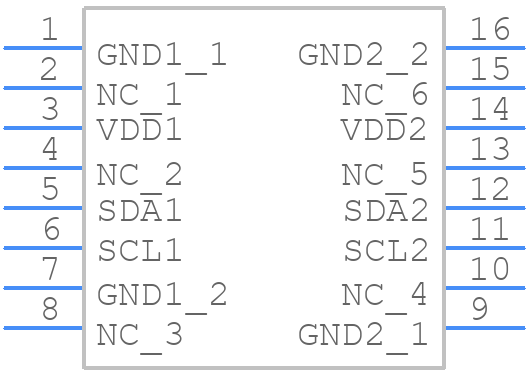

Symbol
ADUM2251WARWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM2251WARWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16 (SOIC)
click to zoom
3D Models
ADUM2251WARWZ-RL - Analog Devices - 3D model - Small Outline Packages - RW-16 (SOIC)
click to zoom

ADUM2251WARWZ-RL Details

  • Manufacturer Part Number:

    ADUM2251WARWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO REQUIRED SUPPLY VOLTAGE OF 3V TO 5.5V FOR PORTB

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM2251WARWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM2251WARWZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM2251WARWZ-RL can support data rates up to 150 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission.
  • To troubleshoot common issues with the ADUM2251WARWZ-RL, start by verifying the power supply voltage, checking for proper signal termination, and ensuring that the input and output signals are within the specified voltage ranges. Additionally, use oscilloscopes or logic analyzers to monitor the signal waveforms and identify any anomalies. Consult the datasheet and application notes for more troubleshooting guidance.
  • Yes, the ADUM2251WARWZ-RL is designed to meet the requirements of safety-critical applications, such as medical devices and industrial control systems. It has been certified to various safety standards, including IEC 60601-1 and IEC 61508. However, it's essential to consult the datasheet and relevant safety standards to ensure that the device is used in compliance with the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM2251WARWZ-RL Overview

Use the download button to access the ADUM2251WARWZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
