ADUM2286ARIZ-RL - Analog Devices

Description: ► High isolation voltage: 5000 V rms ► Up to 100 Mbps data rate ► Low propagation delay: 24 ns maximum ► Low dynamic power consumption ► Bidirectional communication ► 3 V to 5 V level translation ► High temperature operation: 125°C ► High common-mode transient immunity: >25 kV/μs ► Default high output: ADuM2280/ADuM2281 ► Default low output: ADuM2285/ADuM2286 ► 16-lead SOIC wide body enhanced creepage package ► Safety and regulatory approvals ► UL recognition: 5000 V rms for 1 minute per UL 1577

Download ADUM2286ARIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

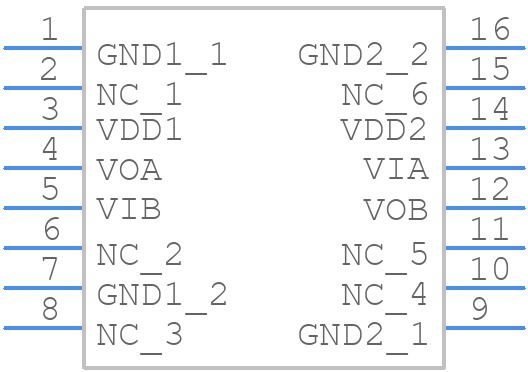

ADUM2286ARIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM2286ARIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2)
click to zoom
3D Models
ADUM2286ARIZ-RL - Analog Devices - 3D model - Small Outline Packages - (RI-16-2)
click to zoom

ADUM2286ARIZ-RL Details

  • Manufacturer Part Number:

    ADUM2286ARIZ-RL

  • Source Url Status Check Date:

    2013-05-01 14:56:50.389

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.75 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM2286ARIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM2286ARIZ-RL should minimize signal traces, use a solid ground plane, and keep the input and output sides of the isolator separate to reduce noise and crosstalk. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure reliable operation of the ADUM2286ARIZ-RL in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. The device is rated for operation up to 125°C, but derating may be necessary for extended operation at high temperatures.
  • The ADUM2286ARIZ-RL is capable of supporting data rates up to 150 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal quality. In general, the device can support high-speed digital signals, but the user should ensure that the signal integrity is maintained to achieve the desired data rate.
  • Yes, the ADUM2286ARIZ-RL can be used in a multi-channel configuration. The device is designed to provide isolation between multiple channels, and multiple devices can be used in parallel to achieve a multi-channel configuration. However, it is essential to ensure that the power supplies and grounds are properly isolated between channels to maintain the isolation barrier.
  • Troubleshooting issues with the ADUM2286ARIZ-RL requires a systematic approach. Start by verifying the power supply and ground connections, then check the signal integrity using an oscilloscope or logic analyzer. Isolation faults can be detected using a multimeter or an isolation tester. The datasheet and application notes provide guidance on troubleshooting and debugging techniques.
