ADUM230E1BRWZ - Analog Devices

Description: Analog Devices ADUM230E1BRWZ PCB SMT 3-channel Digital Isolator, 5 kVrms, 16-Pin SOIC W

Download ADUM230E1BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

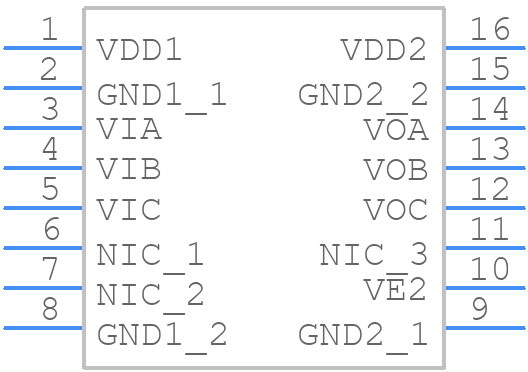

ADUM230E1BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM230E1BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC_W_
click to zoom
3D Models
ADUM230E1BRWZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead SOIC_W_
click to zoom

ADUM230E1BRWZ Details

  • Manufacturer Part Number:

    ADUM230E1BRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM230E1BRWZ Frequently Asked Questions (FAQs)

  • The ADUM230E1BRWZ has an operating temperature range of -40°C to +125°C, and a storage temperature range of -40°C to +150°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout and grounding techniques, such as separating the digital and analog grounds, and using a common mode choke or ferrite bead to filter out high-frequency noise.
  • It is recommended to use a 0.1 μF ceramic capacitor in parallel with a 10 μF electrolytic capacitor to decouple the power supply pins (VDD1 and VDD2) of the ADUM230E1BRWZ.
  • Yes, the ADUM230E1BRWZ can be used in a multi-channel isolation application, but it is recommended to use one device per channel to ensure proper isolation and to avoid any potential crosstalk between channels.
  • To troubleshoot issues with the ADUM230E1BRWZ, it is recommended to check the power supply voltages, signal integrity, and PCB layout, and to use tools such as an oscilloscope and logic analyzer to debug the issue.
