ADUM252N1BRIZ-RL - Analog Devices

Description: Robust 5.0 kVrms Five Channel Digital Isolator w/ Fail-Safe & 2 Reverse Channels

Download ADUM252N1BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

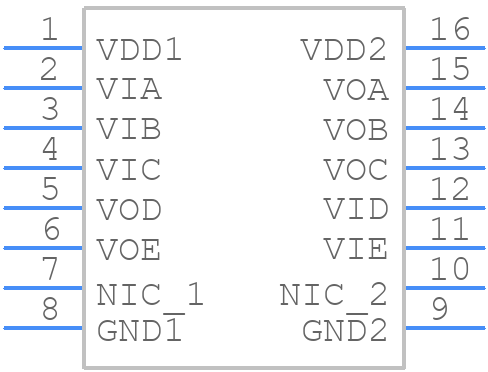

Symbol
ADUM252N1BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM252N1BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-16-2)
click to zoom
3D Models
ADUM252N1BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - (RI-16-2)
click to zoom

ADUM252N1BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM252N1BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM252N1BRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM252N1BRIZ-RL involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM252N1BRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • The ADUM252N1BRIZ-RL is capable of supporting data rates up to 150 Mbps, making it suitable for high-speed digital isolation applications. However, the actual data rate achieved may depend on the specific application, PCB layout, and system design.
  • To troubleshoot issues with the ADUM252N1BRIZ-RL, start by verifying the power supply voltages, checking for proper PCB layout and routing, and ensuring that the device is operated within its specified temperature range. Additionally, use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • Yes, the ADUM252N1BRIZ-RL is compatible with industrial communication protocols such as PROFIBUS, DeviceNet, and others that require high-speed digital isolation. The device's high-speed data rate and low propagation delay make it suitable for these applications.
