ADUM262N1WBRIZ-RL - Analog Devices

Description: Robust 5.0 kVrms Six Channel Digital Isolator w/ Fail-Safe & 2 Reverse Channels

Download ADUM262N1WBRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

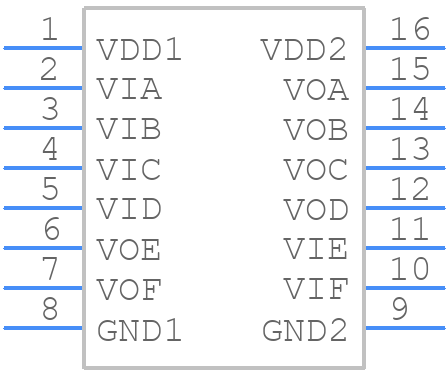

ADUM262N1WBRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM262N1WBRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-16-2 (SOIC)
click to zoom
3D Models
ADUM262N1WBRIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-16-2 (SOIC)
click to zoom

ADUM262N1WBRIZ-RL Details

  • Manufacturer Part Number:

    ADUM262N1WBRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM262N1WBRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM262N1WBRIZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM262N1WBRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM262N1WBRIZ-RL has a maximum allowable common-mode transient immunity of 50 kV/μs, which means it can withstand common-mode transients up to 50 kV/μs without damage or malfunction.
  • Yes, the ADUM262N1WBRIZ-RL is designed to meet the requirements of safety-critical applications, such as those found in industrial control systems, medical devices, and automotive systems. It has been certified to various safety standards, including IEC 61010-1, UL 1577, and CSA. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific safety requirements of the application.
  • To troubleshoot issues with the ADUM262N1WBRIZ-RL, start by verifying the power supply voltages, checking for proper signal connections, and ensuring that the device is operated within its specified temperature range. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM262N1WBRIZ-RL Overview

Use the download button to access the ADUM262N1WBRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
