ADUM262N1WBRIZ - Analog Devices

Description: Robust 5.0 kVrms Six Channel Digital Isolator w/ Fail-Safe & 2 Reverse Channels

Download ADUM262N1WBRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

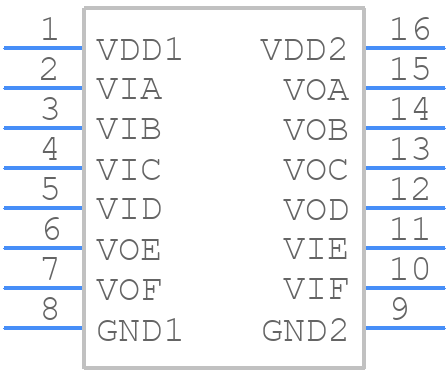

ADUM262N1WBRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM262N1WBRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-16-2 (SOIC)
click to zoom
3D Models
ADUM262N1WBRIZ - Analog Devices - 3D model - Small Outline Packages - RI-16-2 (SOIC)
click to zoom

ADUM262N1WBRIZ Details

  • Manufacturer Part Number:

    ADUM262N1WBRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM262N1WBRIZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM262N1WBRIZ should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM262N1WBRIZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM262N1WBRIZ is capable of supporting data rates up to 150 Mbps, making it suitable for high-speed digital isolation applications. However, the actual data rate achievable may depend on the specific application, PCB layout, and signal quality.
  • To troubleshoot issues with the ADUM262N1WBRIZ, start by verifying the power supply and input signal integrity. Check for proper termination, signal amplitude, and frequency. Use an oscilloscope to monitor the input and output signals, and look for signs of signal degradation or distortion. If issues persist, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.
  • Yes, the ADUM262N1WBRIZ is designed to meet the requirements of safety-critical applications, including medical devices and industrial control systems. It has been certified to various safety standards, such as IEC 60601-1 and IEC 61010-1, and is suitable for use in applications requiring high reliability and fault tolerance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM262N1WBRIZ Overview

Use the download button to access the ADUM262N1WBRIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
