ADUM263N1BRIZ-RL - Analog Devices

Description: Robust 5.0 kVrms Six Channel Digital Isolator w/ Fail-Safe & 3 Reverse Channels

Download ADUM263N1BRIZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

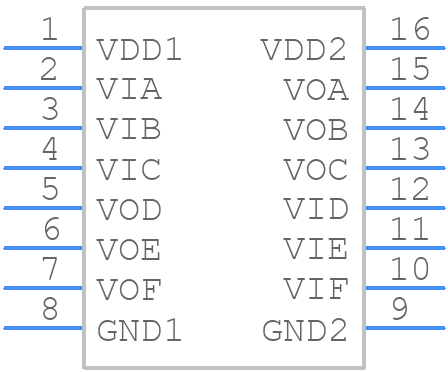

Symbol
ADUM263N1BRIZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM263N1BRIZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RI-16-2 (SOIC)
click to zoom
3D Models
ADUM263N1BRIZ-RL - Analog Devices - 3D model - Small Outline Packages - RI-16-2 (SOIC)
click to zoom

ADUM263N1BRIZ-RL Details

  • Manufacturer Part Number:

    ADUM263N1BRIZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    RI-16-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES AT 2.5V, 3.3V, 5V NOMINAL SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM263N1BRIZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM263N1BRIZ-RL involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM263N1BRIZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power consumption.
  • The ADUM263N1BRIZ-RL has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. It's also recommended to use ESD-protective packaging and to ground all equipment and personnel before handling the device.
  • To troubleshoot issues with the ADUM263N1BRIZ-RL, start by verifying the power supply voltage and ensuring that the device is properly connected. Check the input and output signals using an oscilloscope, and verify that the device is operating within its specified temperature range. If the issue persists, consult the datasheet and application notes for guidance.
  • When using the ADUM263N1BRIZ-RL in a safety-critical application, it's essential to follow proper design and verification procedures to ensure the device operates correctly and reliably. This includes performing thorough testing and validation, using redundant systems and fail-safes, and following relevant safety standards and regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM263N1BRIZ-RL Overview

Use the download button to access the ADUM263N1BRIZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM2, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
