ADUM3165BRSZ-RL - Analog Devices

Description: 3.75 kV RMS Digital Isolators for Isolated USB 2.0 High, Full, and Low Speed

Download ADUM3165BRSZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

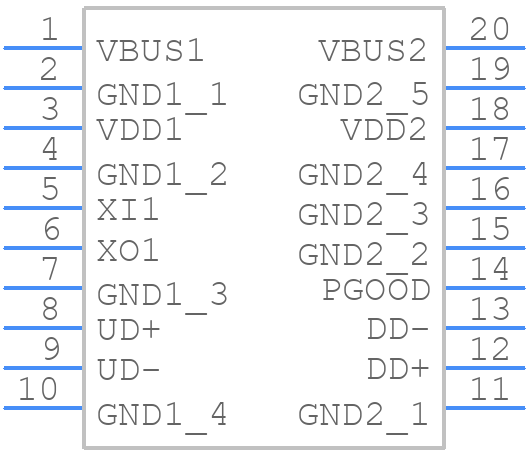

ADUM3165BRSZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3165BRSZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Shrink Small Outline Package [SSOP] (RS-20)-1
click to zoom
3D Models
ADUM3165BRSZ-RL - Analog Devices - 3D model - Small Outline Packages - 20-Lead Shrink Small Outline Package [SSOP] (RS-20)-1
click to zoom

ADUM3165BRSZ-RL Details

  • Manufacturer Part Number:

    ADUM3165BRSZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADUM3165BRSZ-RL Frequently Asked Questions (FAQs)

  • The ADUM3165BRSZ-RL has an operating temperature range of -40°C to 125°C, and a storage temperature range of -40°C to 150°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout and grounding techniques, such as separating the digital and analog grounds, and using shielding and filtering to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADUM3165BRSZ-RL is to power up the VDD1 and VDD2 supplies simultaneously, and then apply the input signals. This helps to ensure proper operation and prevent latch-up.
  • Yes, the ADUM3165BRSZ-RL can be used in a multi-channel configuration by connecting multiple devices in parallel, with each device handling a separate channel. However, it is important to ensure that the total current drawn from the power supplies does not exceed the maximum rating.
  • To troubleshoot issues with the ADUM3165BRSZ-RL, start by checking the power supplies, input signals, and output signals using an oscilloscope or logic analyzer. Also, check the PCB layout and grounding to ensure that they meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM3165BRSZ-RL Overview

Use the download button to access the ADUM3165BRSZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
