ADUM3301WBRWZ - Analog Devices

Description: Triple-Channel, Digital Isolator, Enhanced System-Level ESD Reliability (2/1 channel directionality)

Download ADUM3301WBRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

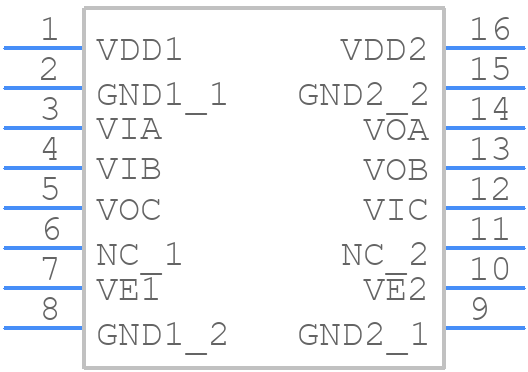

ADUM3301WBRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM3301WBRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Wide Body (RW-16)-2
click to zoom
3D Models
ADUM3301WBRWZ - Analog Devices - 3D model - Small Outline Packages - Wide Body (RW-16)-2
click to zoom

ADUM3301WBRWZ Details

  • Manufacturer Part Number:

    ADUM3301WBRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM3301WBRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM3301WBRWZ should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. The ADUM3301WBRWZ is rated for operation up to 125°C, but derating may be necessary for extended operation at high temperatures.
  • The ADUM3301WBRWZ is capable of supporting data rates up to 100 Mbps, but the actual data rate achievable may depend on the specific application, PCB layout, and signal integrity. It is recommended to consult the datasheet and application notes for more information on achieving high-speed data transfer with the ADUM3301WBRWZ.
  • To troubleshoot issues with the ADUM3301WBRWZ, it is recommended to follow a systematic approach, starting with a review of the PCB layout and signal integrity, followed by verification of the power supply and input signals. The use of oscilloscopes and logic analyzers can be helpful in debugging issues. Consult the datasheet and application notes for more information on troubleshooting techniques.
  • The ADUM3301WBRWZ is designed to meet the requirements of safety-critical applications, including medical devices and industrial control systems. It is certified to meet various safety standards, including IEC 60601-1 and IEC 61010-1. However, it is recommended to consult the datasheet and application notes, as well as relevant safety standards, to ensure that the device is used in a manner that meets the specific requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM3301WBRWZ Overview

Use the download button to access the ADUM3301WBRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
