ADUM341E1BRWZ - Analog Devices

Description: 5.7 kV/3.0 kV rms Quad Digital Isolators

Download ADUM341E1BRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

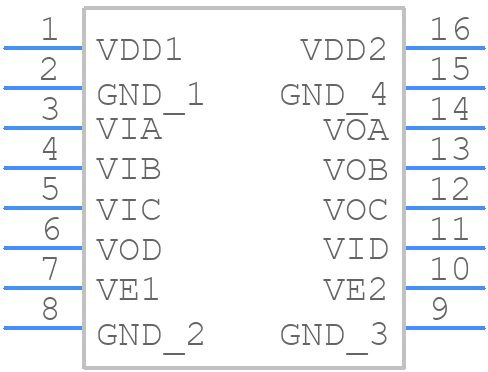

ADUM341E1BRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM341E1BRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 300 MIL_2023-3
click to zoom
3D Models
ADUM341E1BRWZ - Analog Devices - 3D model - Small Outline Packages - SOIC 300 MIL_2023-3
click to zoom

ADUM341E1BRWZ Details

  • Manufacturer Part Number:

    ADUM341E1BRWZ

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 300 MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOIC 300 MIL

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM341E1BRWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM341E1BRWZ should minimize the distance between the input and output pins, use a solid ground plane, and avoid running high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM341E1BRWZ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding excessive power dissipation. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM341E1BRWZ can operate with a high common-mode voltage (up to 1 kV peak) without compromising its isolation performance. However, it's essential to ensure that the common-mode voltage does not exceed the maximum rating, as this can lead to reduced isolation performance or even device failure.
  • To troubleshoot issues with the ADUM341E1BRWZ, start by verifying the power supply voltages, checking for proper connections and PCB layout, and ensuring that the device is operated within its specified temperature range. Additionally, use a logic analyzer or oscilloscope to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ADUM341E1BRWZ is designed to operate with a 5 V supply voltage, but it can also be used with a 3.3 V supply voltage with some limitations. Consult the datasheet and application notes for guidance on using the device with different supply voltages, and ensure that the device is operated within its specified voltage range.
