A good PCB layout for the ADUM3472WCRSZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout and to keep the input and output circuits separate to minimize noise coupling.
To ensure reliable operation of the ADUM3472WCRSZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C) and derated accordingly.
Common failure modes of the ADUM3472WCRSZ-RL7 include overvoltage, overcurrent, and overheating. These can be mitigated by using proper voltage and current limiting circuits, ensuring adequate heat sinking, and following proper PCB layout and design practices. Additionally, using protective devices such as TVS diodes and fuses can help prevent damage from voltage and current surges.
To troubleshoot issues with the ADUM3472WCRSZ-RL7, start by verifying the input voltage and current levels, and ensuring that the device is properly powered. Check the output voltage and current levels, and verify that the output logic levels are correct. Use an oscilloscope to examine the output waveforms and look for signs of noise or distortion. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices Inc. support for further assistance.
Yes, the ADUM3472WCRSZ-RL7 can be used in safety-critical applications, such as industrial control systems, medical devices, and automotive systems. The device is certified to various safety standards, including IEC 60601-1, IEC 61508, and ISO 26262. However, it's essential to consult the datasheet and application notes, and to perform thorough testing and validation to ensure that the device meets the specific safety requirements of the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADUM3472WCRSZ-RL7 Overview

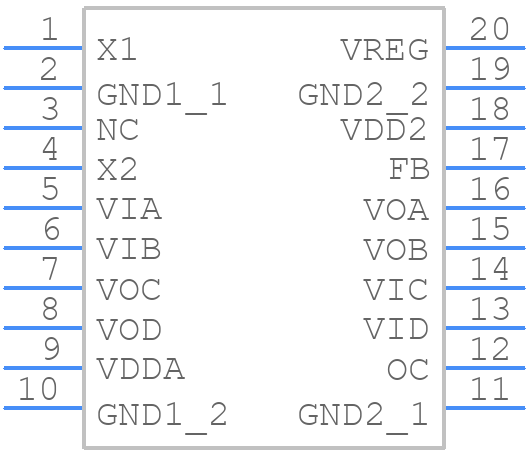

Use the download button to access the ADUM3472WCRSZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM3,
or try a keyword search, such as Other Interface ICs
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
