ADUM4401CRWZ-RL - Analog Devices

Description: 5 kV RMS Quad-Channel Digital Isolators

Download ADUM4401CRWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

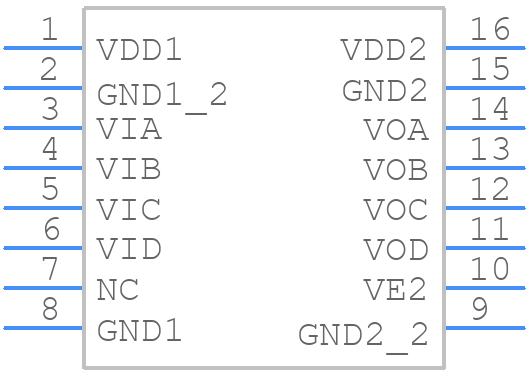

ADUM4401CRWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

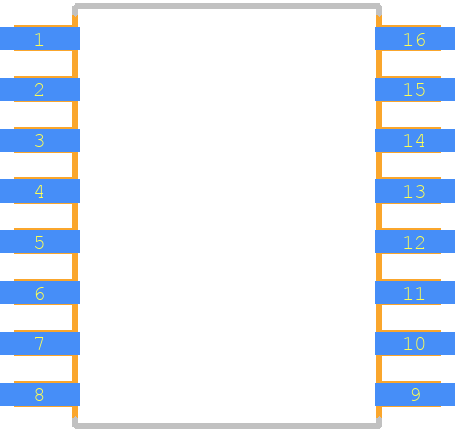

ADUM4401CRWZ-RL - Analog Devices PCB footprint - Other - Other - SOIC127P1032X265-16N
click to zoom
3D Models
ADUM4401CRWZ-RL - Analog Devices - 3D model - Other - SOIC127P1032X265-16N
click to zoom

ADUM4401CRWZ-RL Details

  • Manufacturer Part Number:

    ADUM4401CRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM4401CRWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM4401CRWZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid running high-frequency signals near the isolation barrier. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure reliable operation of the ADUM4401CRWZ-RL in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. The device should be operated within its specified temperature range, and the junction temperature should be kept below 150°C.
  • The ADUM4401CRWZ-RL is capable of supporting data rates up to 150 Mbps. However, the actual data rate that can be achieved depends on the specific application, PCB layout, and signal quality. It is recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission with the ADUM4401CRWZ-RL.
  • To troubleshoot common issues with the ADUM4401CRWZ-RL, it is essential to follow a systematic approach. This includes verifying the power supply, checking the input and output signals, and ensuring proper PCB layout and signal routing. The datasheet and application notes provide troubleshooting guidelines and common pitfalls to avoid. Additionally, Analog Devices Inc provides technical support and resources to help resolve issues with the ADUM4401CRWZ-RL.
  • When working with the ADUM4401CRWZ-RL, it is essential to follow proper safety precautions to avoid electrical shock, injury, or damage to the device. This includes handling the device by the body, avoiding static electricity, and ensuring proper insulation and isolation. The device should be operated within its specified voltage and current ratings, and proper safety certifications and regulatory compliance should be ensured.
