ADUM4402CRWZ-RL - Analog Devices

Description: 5 kV RMS Quad-Channel Digital Isolators

Download ADUM4402CRWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

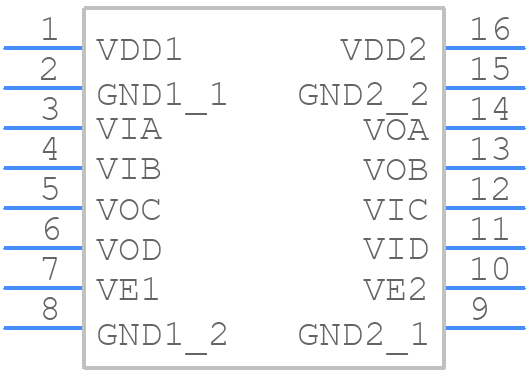

Symbol
ADUM4402CRWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM4402CRWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC_W
click to zoom
3D Models
ADUM4402CRWZ-RL - Analog Devices - 3D model - Small Outline Packages - 16-Lead SOIC_W
click to zoom

ADUM4402CRWZ-RL Details

  • Manufacturer Part Number:

    ADUM4402CRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.98.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM4402CRWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM4402CRWZ-RL should minimize the distance between the input and output pins, use a solid ground plane, and avoid running high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM4402CRWZ-RL in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • The ADUM4402CRWZ-RL is capable of supporting data rates up to 150 Mbps, making it suitable for high-speed digital isolation applications. However, the actual data rate achievable may depend on the specific application, PCB layout, and signal quality.
  • To troubleshoot common issues with the ADUM4402CRWZ-RL, it's essential to follow a systematic approach, starting with a review of the PCB layout, component selection, and power supply design. Check for proper decoupling, signal integrity, and thermal management. Use oscilloscopes and logic analyzers to debug the signal waveforms and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific problems.
  • Yes, the ADUM4402CRWZ-RL is designed to meet the requirements of safety-critical applications, including medical devices and industrial control systems. It has been certified to various safety standards, such as IEC 60601-1, IEC 61010-1, and UL 1577. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific safety requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM4402CRWZ-RL Overview

Use the download button to access the ADUM4402CRWZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM4, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
