ADUM5212ARSZ-RL7 - Analog Devices

Description: Dual-Channel Isolators with Integrated DC-to-DC Converter (0/2 Channel Directionality)

Download ADUM5212ARSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

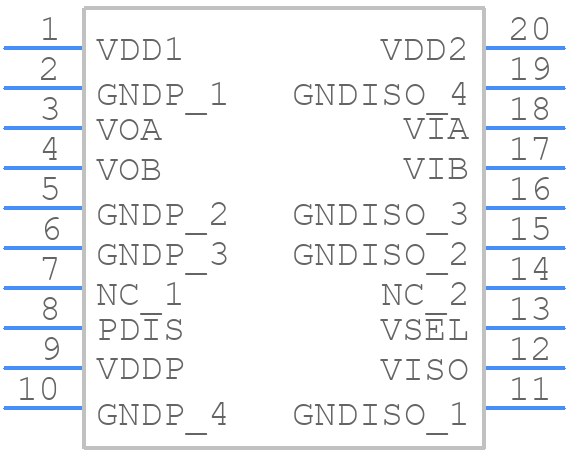

ADUM5212ARSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM5212ARSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RS-20)
click to zoom
3D Models
ADUM5212ARSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - (RS-20)
click to zoom

ADUM5212ARSZ-RL7 Details

  • Manufacturer Part Number:

    ADUM5212ARSZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:51.134

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    23 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    125000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADUM5212ARSZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM5212ARSZ-RL7 involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the ADUM5212ARSZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power consumption.
  • The recommended input termination scheme for the ADUM5212ARSZ-RL7 is a 100-ohm differential termination, while the recommended output termination scheme is a 50-ohm single-ended termination. However, the optimal termination scheme may vary depending on the specific application and signal requirements.
  • To troubleshoot common issues with the ADUM5212ARSZ-RL7, start by verifying the power supply voltage, checking for signal integrity issues, and ensuring that the input and output signals are within the recommended specifications. It's also essential to review the PCB layout and ensure that it meets the recommended layout guidelines.
  • Operating the ADUM5212ARSZ-RL7 beyond its recommended specifications can lead to reduced reliability, increased power consumption, and decreased performance. It's essential to ensure that the device operates within its recommended specifications to guarantee optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM5212ARSZ-RL7 Overview

Use the download button to access the ADUM5212ARSZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM5, or try a keyword search, such as Switching Regulator or Controllers
