ADUM5212BRSZ-RL7 - Analog Devices

Description: Dual-Channel Isolators with Integrated DC-to-DC Converter (0/2 Channel Directionality)

Download ADUM5212BRSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

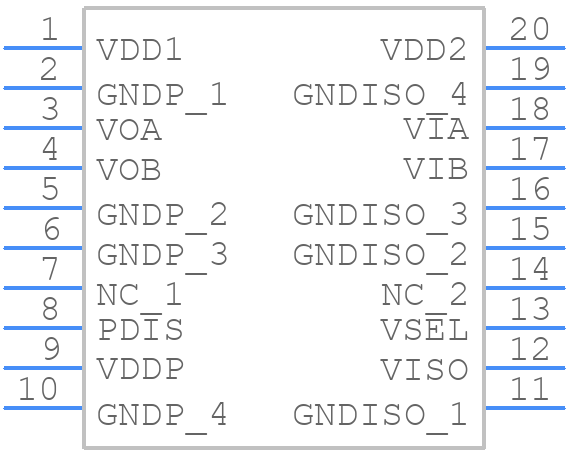

Symbol
ADUM5212BRSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM5212BRSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Shrink Small Outline Package [SSOP] (RS-20)-1
click to zoom
3D Models
ADUM5212BRSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 20-Lead Shrink Small Outline Package [SSOP] (RS-20)-1
click to zoom

ADUM5212BRSZ-RL7 Details

  • Manufacturer Part Number:

    ADUM5212BRSZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:51.139

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    23 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    125000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADUM5212BRSZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM5212BRSZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. Additionally, it's recommended to use a symmetrical layout to reduce electromagnetic interference (EMI).
  • To ensure reliable operation of the ADUM5212BRSZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding thermal gradients. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C).
  • Common failure modes of the ADUM5212BRSZ-RL7 include overvoltage, overcurrent, and excessive temperature. To mitigate these failure modes, it's essential to follow proper design and layout practices, such as using voltage clamps, current limiting resistors, and thermal protection circuits. Additionally, the device should be operated within its specified ratings and guidelines.
  • To troubleshoot issues with the ADUM5212BRSZ-RL7, start by verifying the power supply voltage, input signals, and output loads. Check for proper PCB layout, soldering, and component placement. Use oscilloscopes or logic analyzers to debug the signals and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • Yes, the ADUM5212BRSZ-RL7 can be used in safety-critical applications, but it's essential to follow proper design and verification practices to ensure the device meets the required safety standards. This includes performing failure modes and effects analysis (FMEA), fault tree analysis (FTA), and other safety-related tests and evaluations. Consult the datasheet and relevant safety standards for guidance.
