ADUM5212CRSZ-RL7 - Analog Devices

Description: Dual-Channel Isolators with Integrated DC-to-DC Converter (0/2 Channel Directionality)

Download ADUM5212CRSZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

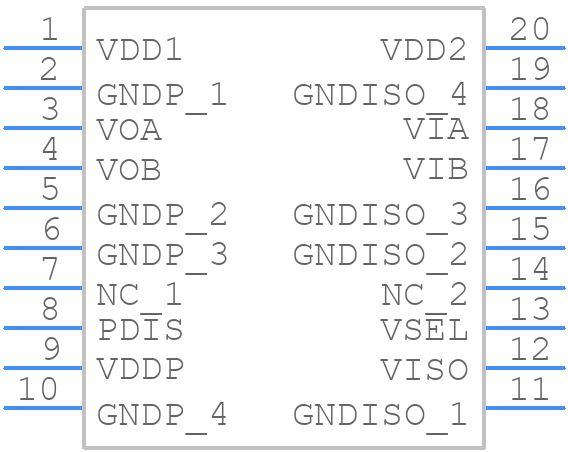

ADUM5212CRSZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM5212CRSZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead SSOP
click to zoom
3D Models
ADUM5212CRSZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 20-Lead SSOP
click to zoom

ADUM5212CRSZ-RL7 Details

  • Manufacturer Part Number:

    ADUM5212CRSZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:51.149

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    23 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    125000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADUM5212CRSZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADUM5212CRSZ-RL7 should minimize the distance between the input and output pins, use a solid ground plane, and avoid routing high-frequency signals near the isolation barrier. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure reliable operation of the ADUM5212CRSZ-RL7 in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. The device should be operated within its specified temperature range, and the junction temperature should be kept below 150°C.
  • The ADUM5212CRSZ-RL7 has built-in ESD protection, but it is still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and avoiding direct contact with the device pins. Additionally, the device should be powered down during assembly and testing to prevent damage from ESD events.
  • To troubleshoot issues with the ADUM5212CRSZ-RL7, start by verifying that the device is properly powered and configured. Check the input and output voltage levels, and ensure that the device is operating within its specified temperature range. Use a logic analyzer or oscilloscope to verify the digital signal integrity and timing. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, and contact Analog Devices support if necessary.
  • When using the ADUM5212CRSZ-RL7 in a safety-critical application, it is essential to follow proper safety design practices and guidelines. This includes performing a thorough risk analysis, implementing redundant safety mechanisms, and ensuring that the device is used within its specified operating conditions. Additionally, the device should be certified to relevant safety standards, such as IEC 61508 or UL 1577, and the system should be designed to meet the required safety integrity level (SIL).
