ADUM5403WCRWZ - Analog Devices

Description: Quad-Channel, 2.5 kV Isolators with Integrated DC-to-DC Converter (1/3 channel directionality)

Download ADUM5403WCRWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

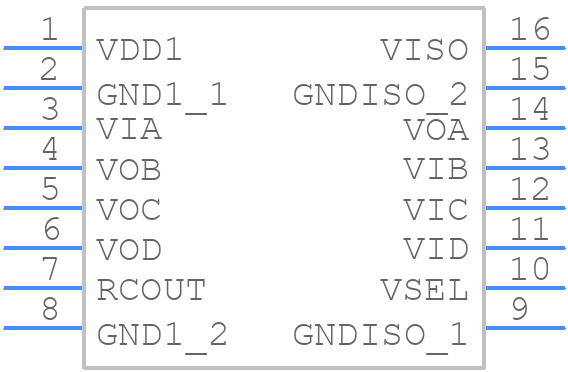

ADUM5403WCRWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM5403WCRWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-16)*
click to zoom
3D Models
ADUM5403WCRWZ - Analog Devices - 3D model - Small Outline Packages - RW-16)*
click to zoom

ADUM5403WCRWZ Details

  • Manufacturer Part Number:

    ADUM5403WCRWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8543.70.99.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADUM5403WCRWZ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADUM5403WCRWZ is -40°C to 125°C.
  • To ensure reliable operation in high-noise environments, it is recommended to use proper PCB layout techniques, such as separating the analog and digital grounds, using shielding, and minimizing loop areas. Additionally, consider using noise-filtering components, such as capacitors and resistors, to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADUM5403WCRWZ is to power up the VDD1 and VDD2 supplies simultaneously, followed by the VISO supply. This ensures proper initialization of the internal circuitry and prevents potential latch-up conditions.
  • To troubleshoot issues with the ADUM5403WCRWZ, start by verifying the power supply voltages, checking for proper connections and soldering, and ensuring that the device is operated within its recommended operating conditions. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The ADUM5403WCRWZ is a general-purpose digital isolator and is not specifically designed or certified for use in safety-critical applications. However, it can be used in such applications if proper design and testing procedures are followed to ensure compliance with relevant safety standards and regulations. Consult with Analog Devices Inc. and relevant industry experts for guidance on using the ADUM5403WCRWZ in safety-critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM5403WCRWZ Overview

Use the download button to access the ADUM5403WCRWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM5, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
