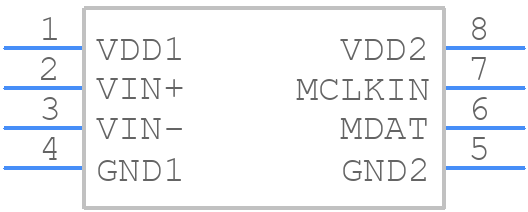

ADUM7703-8BRIZ-RL - Analog Devices

ADUM7703-8BRIZ-RL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ADUM7703?
  A good PCB layout for the ADUM7703 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the ADUM7703 and the isolation barrier. Additionally, it's recommended to use a symmetrical layout and to avoid routing digital signals near the analog signals.
• How do I ensure reliable communication between the primary and secondary sides of the ADUM7703?
  To ensure reliable communication, it's essential to follow the recommended layout and routing guidelines, use a stable and accurate clock source, and ensure that the signal integrity is maintained across the isolation barrier. Additionally, it's recommended to use a common mode filter or a shielded cable to reduce electromagnetic interference (EMI).
• What is the maximum temperature range for the ADUM7703, and how does it affect the device's performance?
  The ADUM7703 is rated for operation from -40°C to +125°C. Temperature affects the device's performance, particularly the isolation voltage and the common-mode rejection ratio (CMRR). At higher temperatures, the isolation voltage may decrease, and the CMRR may degrade. It's essential to consider the operating temperature range when designing the system.
• How do I troubleshoot issues with the ADUM7703, such as incorrect data transmission or isolation faults?
  To troubleshoot issues with the ADUM7703, start by verifying the power supply and clock signals. Check the signal integrity and noise levels on both the primary and secondary sides. Use an oscilloscope to monitor the signals and look for any signs of distortion or noise. If the issue persists, try swapping the ADUM7703 with a new device or checking the PCB layout for any errors or defects.
• Can I use the ADUM7703 in a redundant or fault-tolerant system design?
  Yes, the ADUM7703 can be used in redundant or fault-tolerant system designs. The device's isolation feature allows it to be used in systems that require high reliability and fault tolerance. However, it's essential to consider the system-level design and ensure that the redundant or fault-tolerant architecture is properly implemented to take advantage of the ADUM7703's features.
