Part Image

ADUM7703-8BRIZ - Analog Devices

Description: Analog to Digital Converters - ADC +/- 250mV low power ISO ADC with LDO

Download ADUM7703-8BRIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

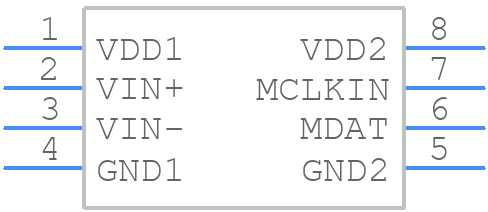

ADUM7703-8BRIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADUM7703-8BRIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC
click to zoom
3D Models
ADUM7703-8BRIZ - Analog Devices - 3D model - Small Outline Packages - SOIC
click to zoom

ADUM7703-8BRIZ Details

  • Manufacturer Part Number:

    ADUM7703-8BRIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RI-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    0.32 V

  • Analog Input Voltage-Min:

    -0.32 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.5 mm

  • Linearity Error-Max (EL):

    0.0076%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

ADUM7703-8BRIZ Frequently Asked Questions (FAQs)

  • The ADUM7703-8BRIZ can support data rates up to 100 Mbps, but the actual data rate may be limited by the specific application and system design.
  • The ADUM7703-8BRIZ has a high common-mode transient immunity of 100 kV/μs and can reject common-mode noise up to 15 V peak. It also has a proprietary iCoupler technology that provides high isolation and noise rejection.
  • The ADUM7703-8BRIZ has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the ADUM7703-8BRIZ is designed to meet the requirements of IEC 60747-5-2 (VDE 0884-11) and UL 1577, making it suitable for use in safety-critical applications such as industrial control systems, medical devices, and automotive systems.
  • The ADUM7703-8BRIZ has a proprietary power supply sequencing and brownout detection circuitry that ensures reliable operation during power-up and power-down sequences, as well as during brownout conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADUM7703-8BRIZ Overview

Use the download button to access the ADUM7703-8BRIZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADUM7, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
