ADV3200ASWZ - Analog Devices

ADV3200ASWZ Details

• Manufacturer Part Number:

  ADV3200ASWZ

• Source Url Status Check Date:

  2013-05-01 14:56:51.489

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFP

• Package Description:

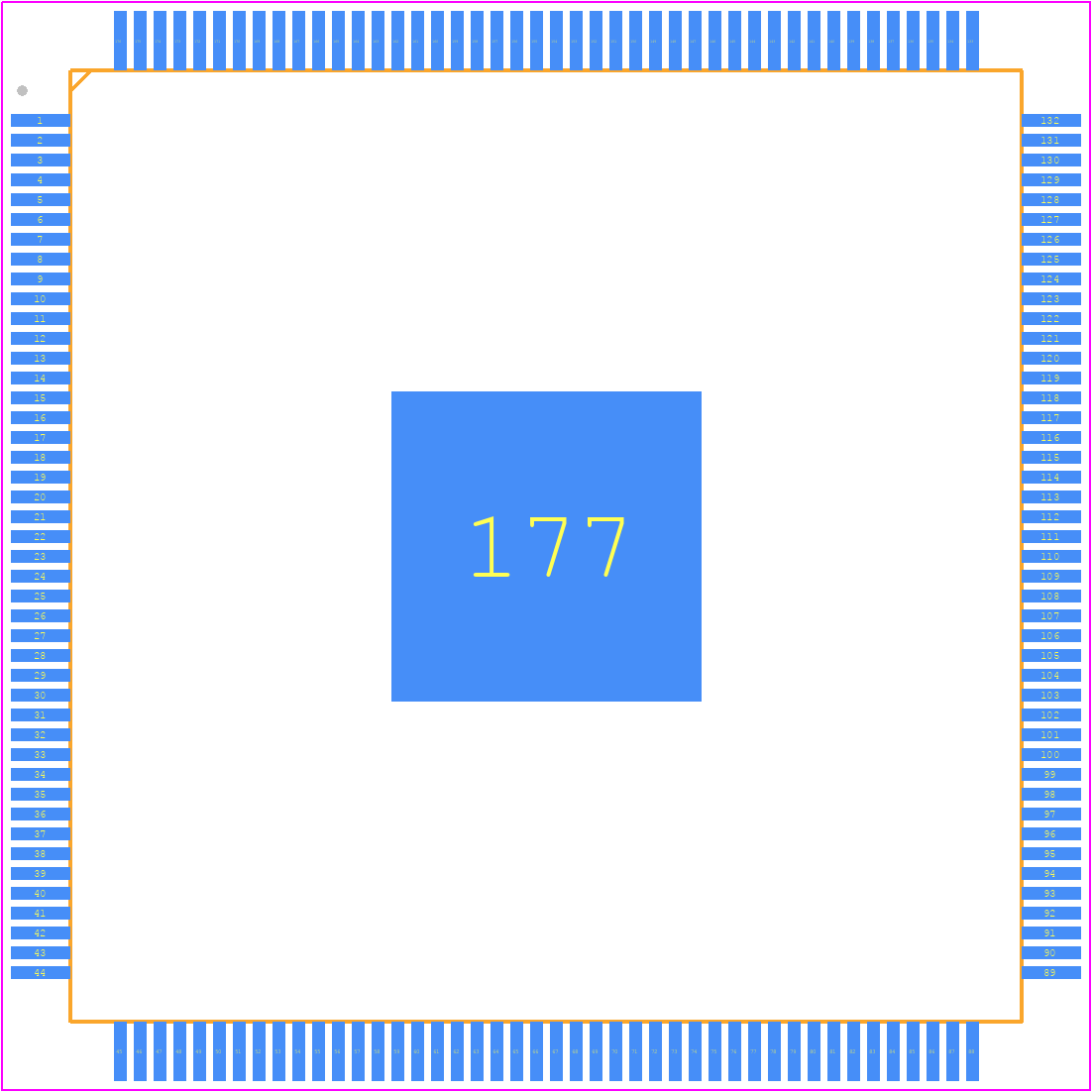

  24 X 24 MM, ROHS COMPLIANT, MS-026BGA-HD, LQFP-176

• Pin Count:

  176

• Manufacturer Package Code:

  SW-176-1

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  CROSS POINT SWITCH

• JESD-30 Code:

  S-PQFP-G176

• JESD-609 Code:

  e3

• Length:

  24 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -2.75 V

• Neg Supply Voltage-Min (Vsup):

  -2.25 V

• Neg Supply Voltage-Nom (Vsup):

  -2.5 V

• Number of Channels:

  32

• Number of Functions:

  1

• Number of Terminals:

  176

• Off-state Isolation-Nom:

  90 dB

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP176,1.0SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.6 mm

• Signal Current-Max:

  310 A

• Supply Current-Max (Isup):

  300 mA

• Supply Voltage-Max (Vsup):

  2.75 V

• Supply Voltage-Min (Vsup):

  2.25 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  50 ns

• Switch-on Time-Max:

  50 ns

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  24 mm
