ADV3221ARZ-R7 - Analog Devices

Description: 800 MHz, 4:1 Analog Multiplexer

Download ADV3221ARZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

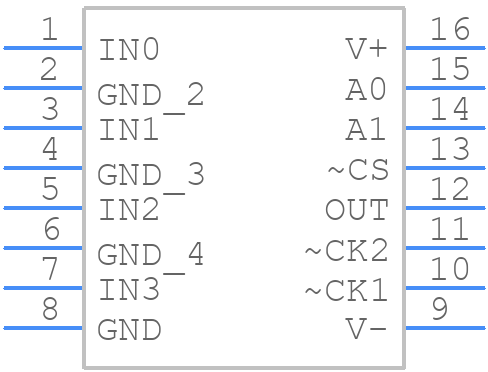

Symbol
ADV3221ARZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV3221ARZ-R7 - Analog Devices PCB footprint - Other - Other - SOIC127P600X175-16N
click to zoom
3D Models
ADV3221ARZ-R7 - Analog Devices - 3D model - Other - SOIC127P600X175-16N
click to zoom

ADV3221ARZ-R7 Details

  • Manufacturer Part Number:

    ADV3221ARZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:51.532

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.009 A

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADV3221ARZ-R7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV3221ARZ-R7 can be found in the 'Layout Considerations' section of the datasheet. Additionally, Analog Devices provides a reference design and layout guidelines in the 'ADV3221 Evaluation Board' user guide.
  • The ADV3221ARZ-R7 can be configured for specific video formats using the I2C interface. The 'Register Map' section of the datasheet provides a detailed description of the registers and their functions. Additionally, the 'ADV3221 Programming Guide' provides examples of register settings for common video formats.
  • The maximum cable length supported by the ADV3221ARZ-R7 depends on the video format and the quality of the cable. As a general guideline, the ADV3221ARZ-R7 can support cable lengths of up to 10 meters for HDMI 2.0 and up to 15 meters for HDMI 1.4. However, it's recommended to consult the 'HDMI Specification' and perform signal integrity analysis to determine the maximum cable length for a specific application.
  • Troubleshooting issues with the ADV3221ARZ-R7 can be done using a combination of tools and techniques. The 'ADV3221 Debug Guide' provides a step-by-step approach to troubleshooting common issues. Additionally, Analog Devices provides a range of tools and software, such as the 'ADV3221 Evaluation Board' and the 'Analog Devices HDMI Analyzer', to help debug and analyze HDMI signals.
  • The ADV3221ARZ-R7 is a HDMI 2.0 compliant device and does not support HDMI 2.1. However, Analog Devices offers other products that support HDMI 2.1, such as the ADV3430. It's recommended to consult the datasheet and product page for the latest information on HDMI version support.
