ADV3221ARZ - Analog Devices

Description: Analog Devices ADV3221ARZ, Multiplexer Single 4 x 1, 16-Pin SOIC

Download ADV3221ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

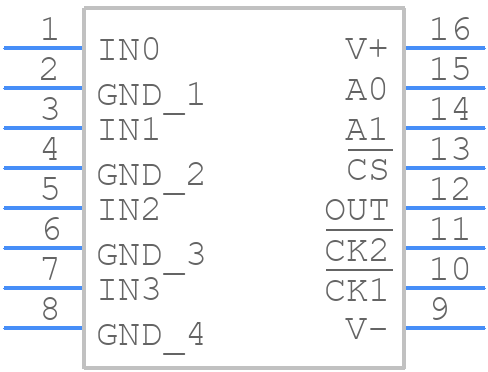

ADV3221ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV3221ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADV3221ARZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADV3221ARZ Details

  • Manufacturer Part Number:

    ADV3221ARZ

  • Source Url Status Check Date:

    2013-05-01 14:56:51.531

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.009 A

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADV3221ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV3221ARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the ADV3221ARZ and the capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the performance of the ADV3221ARZ in a noisy environment, use a low-pass filter on the input, add a ferrite bead or a common-mode choke to the power supply lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
  • The ADV3221ARZ can support clock frequencies up to 100 MHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for specific guidance.
  • The ADV3221ARZ can be configured for different video formats using the I2C interface. Consult the datasheet and application notes for specific register settings and configuration examples for different video formats such as VGA, SVGA, and XGA.
  • The power consumption of the ADV3221ARZ depends on the specific application and operating conditions. Typically, the power consumption is around 300-400 mW, but it can be as low as 100 mW in low-power mode. Consult the datasheet for specific power consumption values.
