ADV3229ACPZ - Analog Devices

Description: Analog Devices ADV3229ACPZ, Crosspoint Switch 8 x 8 900MHz Video, 72-Pin LFCSP VQ

Download ADV3229ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADV3229ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

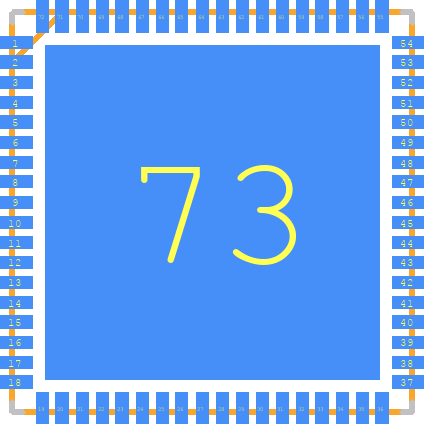

ADV3229ACPZ - Analog Devices PCB footprint - Other - Other - QFN50P1000X1000X100-73N
click to zoom
3D Models
ADV3229ACPZ - Analog Devices - 3D model - Other - QFN50P1000X1000X100-73N
click to zoom

ADV3229ACPZ Details

  • Manufacturer Part Number:

    ADV3229ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Off-state Isolation-Nom:

    87 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC72,.39SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

ADV3229ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV3229ACPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To optimize the performance of the ADV3229ACPZ in a noisy environment, use a low-pass filter on the input signals, ensure good power supply decoupling, and use a shielded enclosure. Additionally, consider using a common-mode choke or a ferrite bead on the input lines to reduce electromagnetic interference (EMI).
  • The ADV3229ACPZ can support clock frequencies up to 100 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
  • Yes, the ADV3229ACPZ can operate with a 3.3V power supply. However, the device is specified for a 2.5V to 3.6V power supply range. Operating the device at 3.3V may affect its performance, and it's recommended to consult the datasheet and application notes for more information.
  • The ADV3229ACPZ is a highly configurable device, and the configuration depends on the specific video format required. Consult the datasheet and application notes for more information on configuring the device for different video formats, such as HDMI, DVI, or VGA.
