ADV7120KPZ30 - Analog Devices

Description: ADV7120KPZ30, Video DAC Triple, 8 bit- Parallel, 44-Pin PLCC

Download ADV7120KPZ30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

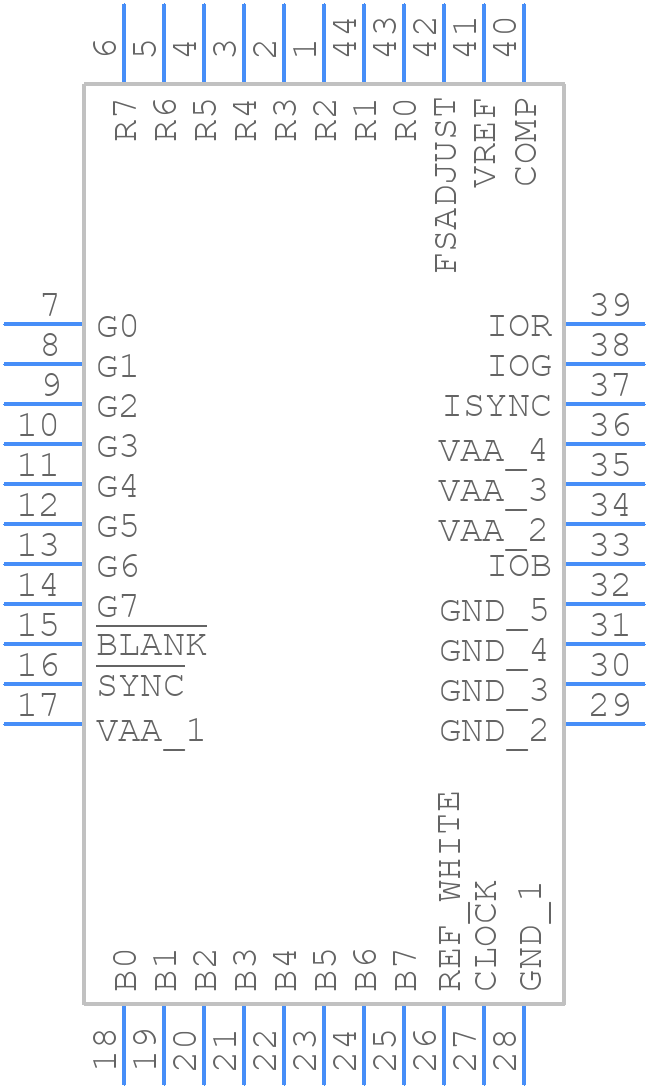

ADV7120KPZ30 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7120KPZ30 - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-44A
click to zoom

ADV7120KPZ30 Details

  • Manufacturer Part Number:

    ADV7120KPZ30

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LCC

  • Package Description:

    PLASTIC, LCC-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    P-44A

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    1.4 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    S-PQCC-J44

  • JESD-609 Code:

    e3

  • Length:

    16.5862 mm

  • Linearity Error-Max (EL):

    0.391%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    3

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max:

    125 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    16.5862 mm

ADV7120KPZ30 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and the device operates reliably.
  • To optimize the ADV7120KPZ30's performance for a specific video format, you can adjust the internal clock settings, video gain, and filter coefficients using the device's registers. You can also use the device's built-in test patterns to verify the video output.
  • The maximum cable length supported by the ADV7120KPZ30's TMDS outputs depends on the specific application and the quality of the cables used. However, as a general guideline, Analog Devices recommends keeping the cable length below 10 meters to ensure reliable operation.
  • Yes, the ADV7120KPZ30 can be used with non-standard video formats, but it may require custom programming of the device's registers and/or external circuitry to support the specific format. It's recommended to consult with Analog Devices' technical support team for guidance on implementing non-standard video formats.
  • To troubleshoot issues with the ADV7120KPZ30's video output, start by verifying the device's power supply, clock signals, and digital inputs. Then, use the device's built-in test patterns and diagnostic registers to isolate the problem. You can also use external test equipment, such as an oscilloscope or video analyzer, to analyze the video output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7120KPZ30 Overview

Use the download button to access the ADV7120KPZ30 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV71, or try a keyword search, such as Digital to Analog Converters
