ADV7127KR50 - Analog Devices

Description: CMOS, 240 MHz 10-Bit High Speed Video DAC

Download ADV7127KR50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

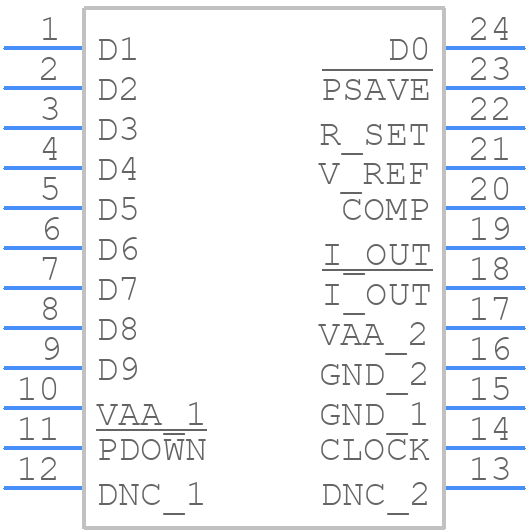

ADV7127KR50 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7127KR50 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)
click to zoom
3D Models
ADV7127KR50 - Analog Devices - 3D model - Small Outline Packages - 24-Lead Thin Shrink Small Outline Package [TSSOP] (RU-24)
click to zoom

ADV7127KR50 Details

  • Manufacturer Part Number:

    ADV7127KR50

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    1.4 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    17.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADV7127KR50 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the digital inputs. This ensures proper device operation and prevents latch-up.
  • To optimize performance for a specific video format, adjust the internal clock frequency, pixel clock frequency, and video timing parameters using the device's registers. Refer to the datasheet and application notes for specific settings and guidelines.
  • The maximum cable length supported by the ADV7127KR50 depends on the video format, cable quality, and signal attenuation. As a general guideline, the device can support up to 10 meters of cable length for VGA and up to 5 meters for SVGA resolutions.
  • To troubleshoot video output issues, check the device's power supply, clock signals, and video input signals. Use an oscilloscope to verify the signal integrity and timing. Also, ensure that the device is properly configured and that the video format is correctly set.
  • Yes, the ADV7127KR50 can be used with non-standard video formats, but it may require custom programming and configuration. Contact Analog Devices Inc for support and guidance on implementing non-standard video formats.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7127KR50 Overview

Use the download button to access the ADV7127KR50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV71, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
