ADV7180WBCPZ-REEL - Analog Devices

Description: Video ICs 10B 4x Oversampling SDTV Decoder

Download ADV7180WBCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

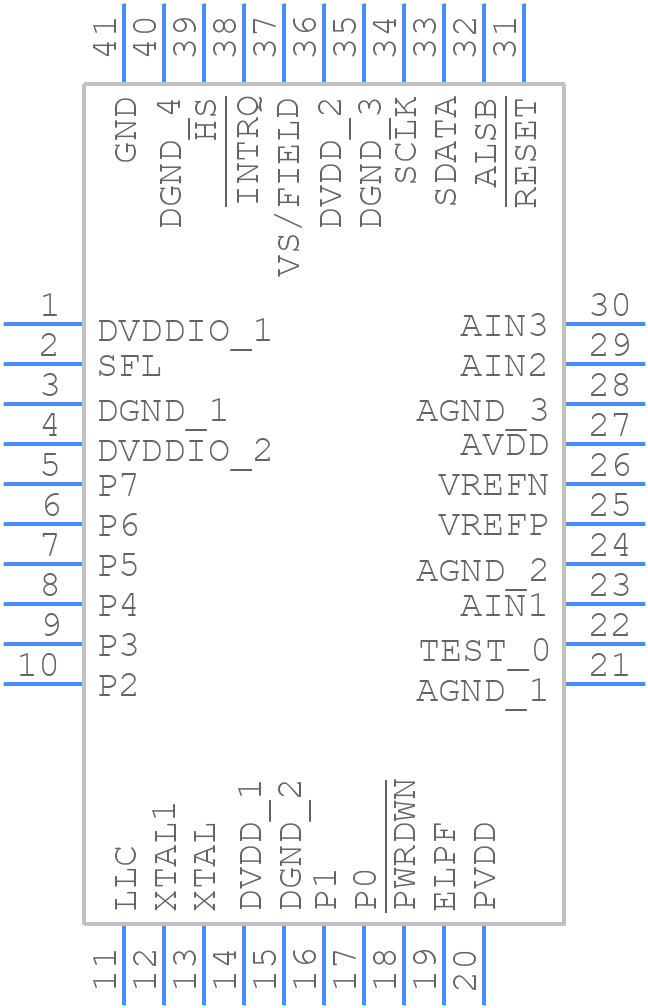

ADV7180WBCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7180WBCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-9 (LFCSP)
click to zoom
3D Models
ADV7180WBCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-9 (LFCSP)
click to zoom

ADV7180WBCPZ-REEL Details

  • Manufacturer Part Number:

    ADV7180WBCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADV7180WBCPZ-REEL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV7180WBCPZ-REEL can be found in the evaluation board design files and layout guides provided by Analog Devices Inc. It's essential to follow these guidelines to ensure proper signal integrity and minimize noise.
  • The ADV7180WBCPZ-REEL can be configured for different video input formats using the I2C interface. Refer to the datasheet and programming guide for specific register settings and configuration details.
  • The ADV7180WBCPZ-REEL supports clock frequencies up to 75 MHz. However, the maximum clock frequency may vary depending on the specific application and video format. Refer to the datasheet for more information.
  • To troubleshoot issues with the ADV7180WBCPZ-REEL, start by checking the power supply, clock, and reset signals. Then, verify the I2C communication and register settings. If issues persist, refer to the datasheet and application notes for troubleshooting guides and FAQs.
  • The ADV7180WBCPZ-REEL is designed to operate with a 1.8V power supply. While it's possible to use it with a different voltage supply, it's not recommended as it may affect the device's performance and reliability. Consult with Analog Devices Inc. for specific guidance on voltage supply variations.
