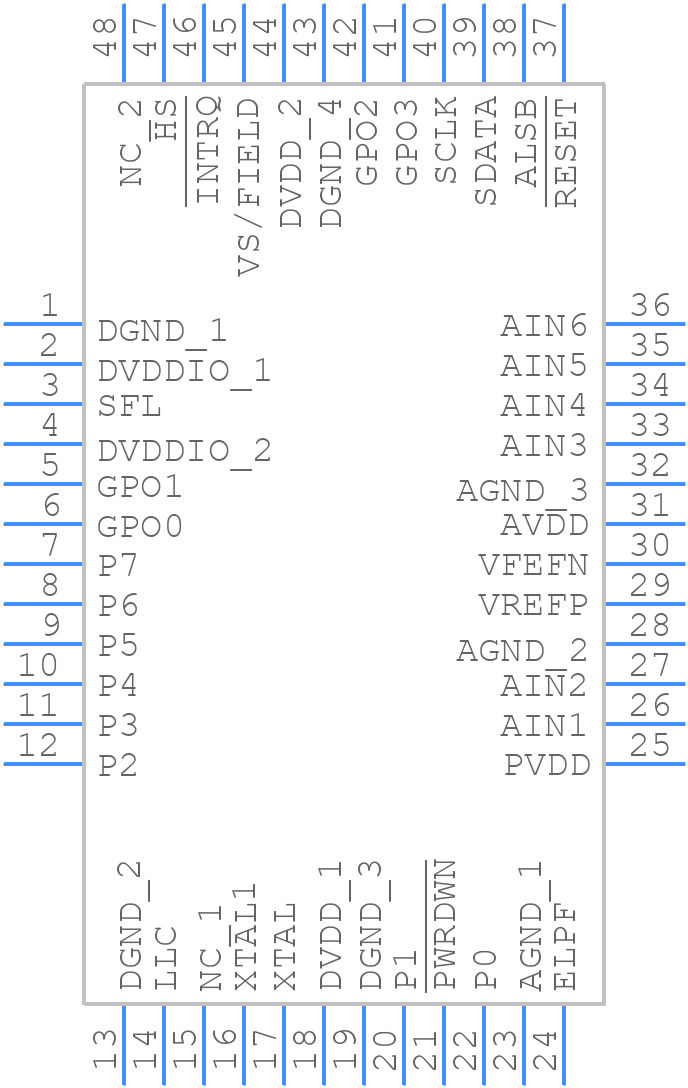

ADV7180WBST48Z-RL - Analog Devices

ADV7180WBST48Z-RL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADV7180WBST48Z-RL?
  A good PCB layout for the ADV7180WBST48Z-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
• How do I optimize the ADV7180WBST48Z-RL for a specific video input?
  To optimize the ADV7180WBST48Z-RL for a specific video input, you need to adjust the gain and offset settings for the analog front-end. You can use the device's built-in calibration features and adjust the settings based on the input signal characteristics.
• What is the maximum clock frequency supported by the ADV7180WBST48Z-RL?
  The ADV7180WBST48Z-RL supports clock frequencies up to 75 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
• How do I handle the thermal management of the ADV7180WBST48Z-RL?
  The ADV7180WBST48Z-RL has a maximum junction temperature of 150°C. To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package.
• What is the recommended power-up sequence for the ADV7180WBST48Z-RL?
  The recommended power-up sequence for the ADV7180WBST48Z-RL is to power up the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
