ADV7280ABCPZ-M-RL - Analog Devices

Description: Video ICs 10-Bit, 4 Oversampled SDTV Video Decoder with Deinterlacer

Download ADV7280ABCPZ-M-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

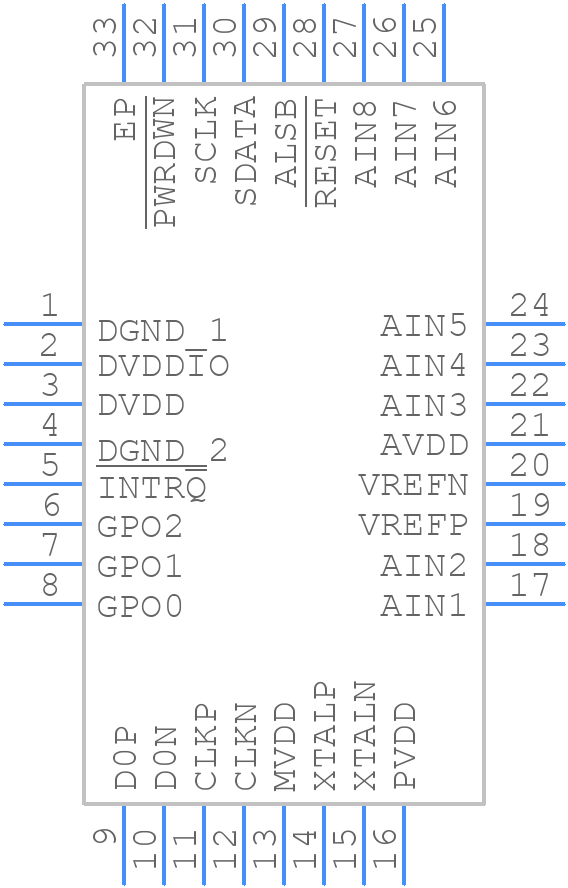

ADV7280ABCPZ-M-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7280ABCPZ-M-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-12)
click to zoom
3D Models
ADV7280ABCPZ-M-RL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-12)
click to zoom

ADV7280ABCPZ-M-RL Details

  • Manufacturer Part Number:

    ADV7280ABCPZ-M-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADV7280ABCPZ-M-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV7280ABCPZ-M-RL can be found in the ADV7280 Evaluation Board User Guide (UG-235) and the ADV7280 Layout Guidelines document (AN-1269) available on the Analog Devices website.
  • The ADV7280ABCPZ-M-RL can be configured for specific video input formats using the I2C interface. The configuration process is described in the ADV7280 datasheet and the ADV7280 Register Map document (UG-234) available on the Analog Devices website.
  • The maximum cable length supported by the ADV7280ABCPZ-M-RL depends on the video input format and the quality of the cable. As a general guideline, the ADV7280ABCPZ-M-RL can support cable lengths up to 10 meters for SD-SDI, 5 meters for HD-SDI, and 3 meters for 3G-SDI. However, it is recommended to perform signal integrity analysis and testing to determine the maximum cable length for a specific application.
  • Troubleshooting video signal issues with the ADV7280ABCPZ-M-RL can be done using the ADV7280 Evaluation Board and the ADV7280 Diagnostic Software Tool (AN-1268) available on the Analog Devices website. The tool provides a graphical user interface to monitor and analyze the video signal, as well as to configure the device settings.
  • Yes, the ADV7280ABCPZ-M-RL is AEC-Q100 qualified and suitable for automotive applications. However, it is recommended to consult with Analog Devices' automotive support team to ensure that the device meets the specific requirements of the application.
