ADV7280AWBCPZ - Analog Devices

Description: Video ICs 10-bit SD Video Decoder with Deinterlacer

Download ADV7280AWBCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

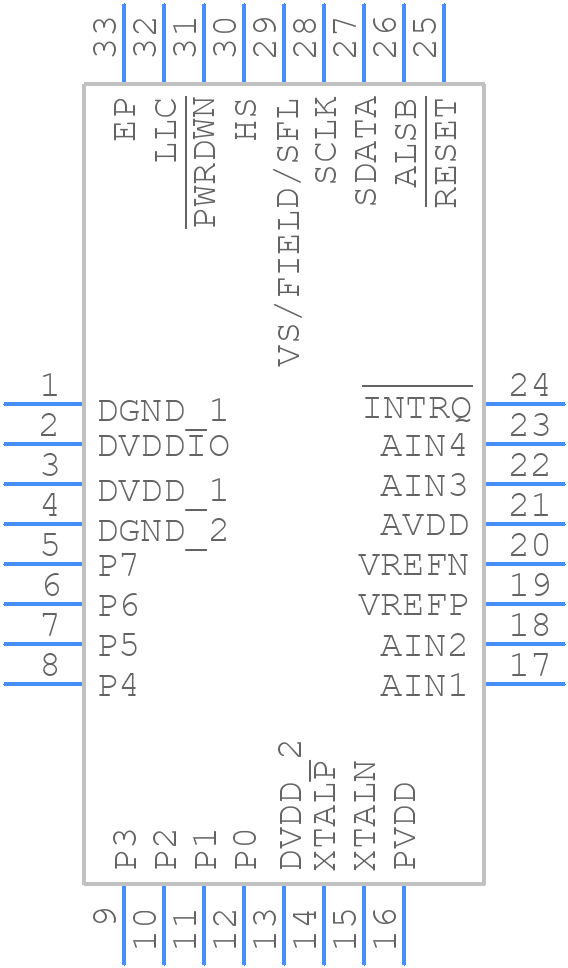

Symbol
ADV7280AWBCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7280AWBCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-12)-+-++
click to zoom
3D Models
ADV7280AWBCPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-12)-+-++
click to zoom

ADV7280AWBCPZ Details

  • Manufacturer Part Number:

    ADV7280AWBCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADV7280AWBCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7280AWBCPZ can be configured for different video input standards using the I2C interface. The specific register settings for each standard are provided in the datasheet. For example, to configure the device for NTSC, set register 0x10 to 0x01 and register 0x11 to 0x00.
  • The maximum clock frequency that can be used with the ADV7280AWBCPZ is 75 MHz. However, the recommended clock frequency is 27 MHz, which provides the best balance between performance and power consumption.
  • To troubleshoot issues with the ADV7280AWBCPZ, start by checking the power supply voltages and clock signals. Verify that the device is properly configured using the I2C interface. Use an oscilloscope to check the video output signals and verify that they meet the required specifications.
  • Yes, the ADV7280AWBCPZ can be used in a multi-chip module (MCM) design. However, special care must be taken to ensure that the device is properly decoupled and that the thermal design is adequate to handle the power dissipation.
