ADV7280BCPZ-RL - Analog Devices

Description: 10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer

Download ADV7280BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

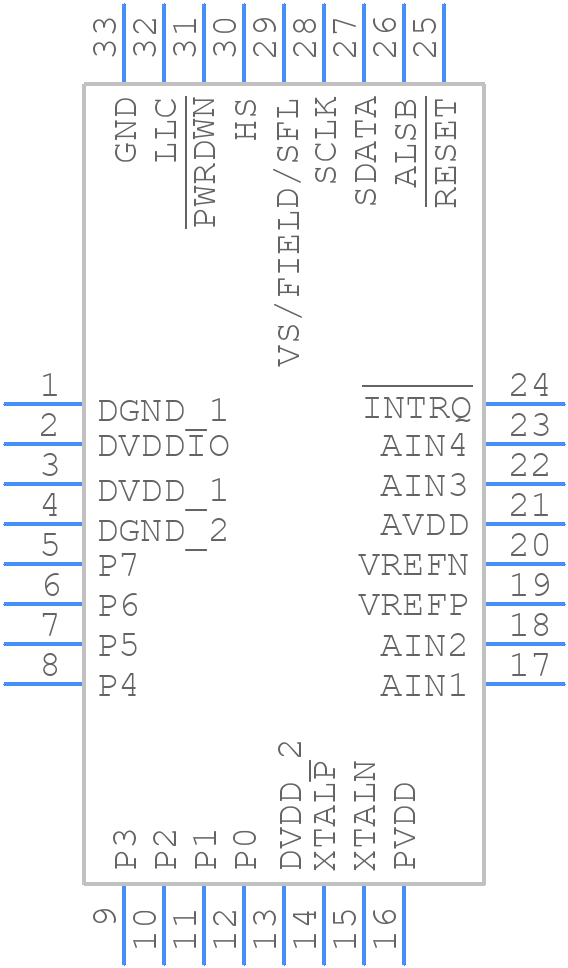

ADV7280BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7280BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 5 mm × 5 mm Body, Very Very Thin Quad (CP-32-12)
click to zoom
3D Models
ADV7280BCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 5 mm × 5 mm Body, Very Very Thin Quad (CP-32-12)
click to zoom

ADV7280BCPZ-RL Details

  • Manufacturer Part Number:

    ADV7280BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7280BCPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7280BCPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the analog inputs. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To optimize the ADV7280BCPZ-RL for a specific video input, adjust the gain and offset settings for the analog front-end, and fine-tune the clock and data alignment settings. You may also need to adjust the chroma and luma filters to optimize the video quality.
  • The maximum cable length supported by the ADV7280BCPZ-RL depends on the video standard and the quality of the cable. As a general rule, the ADV7280BCPZ-RL can support cable lengths of up to 10 meters for SD-SDI, 20 meters for HD-SDI, and 30 meters for 3G-SDI.
  • To troubleshoot issues with the ADV7280BCPZ-RL, start by checking the power supply and clock signals. Verify that the video input is correct and that the device is properly configured. Use an oscilloscope to check the analog video signals and the digital output. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The ADV7280BCPZ-RL is designed to support standard video formats such as SD-SDI, HD-SDI, and 3G-SDI. However, it may be possible to use the device with non-standard video inputs with custom configuration and programming. Consult with Analog Devices Inc. or a qualified engineer for guidance on custom applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7280BCPZ-RL Overview

Use the download button to access the ADV7280BCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV72, or try a keyword search, such as Color Signal Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
