Part Image

ADV7280KCPZ-RL - Analog Devices

Description: 10-Bit, 4× Oversampled SDTV Video Decoder with Deinterlacer

Download ADV7280KCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

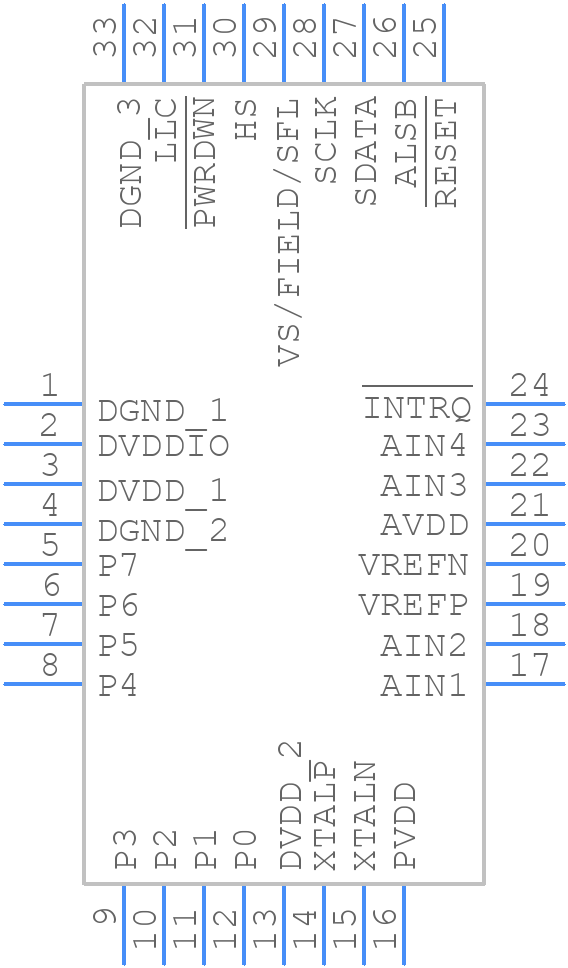

ADV7280KCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7280KCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]_2024-1
click to zoom
3D Models
ADV7280KCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]_2024-1
click to zoom

ADV7280KCPZ-RL Details

  • Manufacturer Part Number:

    ADV7280KCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7280KCPZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADV7280KCPZ-RL can be found in the ADV7280 Evaluation Board User Guide (UG-311) and the ADV7280 Layout Guide (EB-311). These documents provide detailed guidelines for PCB layout, component placement, and routing to ensure optimal performance.
  • The ADV7280KCPZ-RL can be configured for specific video input formats using the I2C interface. The device has a set of registers that control the video input format, such as the input standard, clock frequency, and video mode. The ADV7280 datasheet provides a detailed description of the register settings for different video input formats.
  • The maximum cable length supported by the ADV7280KCPZ-RL depends on the video input format and the quality of the cable. In general, the device can support cable lengths of up to 10 meters for SD-SDI, 20 meters for HD-SDI, and 30 meters for 3G-SDI. However, the actual cable length may vary depending on the specific application and environment.
  • Troubleshooting issues with the ADV7280KCPZ-RL typically involves checking the power supply, clock signals, and video input signals. The device has a set of status registers that can be used to monitor its operation and detect errors. The ADV7280 datasheet provides a detailed troubleshooting guide, and Analog Devices also offers a range of evaluation boards and software tools to help debug and test the device.
  • Yes, the ADV7280KCPZ-RL is compatible with automotive applications. The device is AEC-Q100 qualified and meets the requirements for automotive infotainment systems. However, it is essential to ensure that the device is used within its specified operating conditions and that the system design meets the relevant automotive standards and regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7280KCPZ-RL Overview

Use the download button to access the ADV7280KCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV72, or try a keyword search, such as Color Signal Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
