ADV7281WBCPZ-M - Analog Devices

Description: ADV7281WBCPZ-M, Video Decoder NTSC, PAL, SECAM 1-channel 10bit- 1.8 (Analogue/Digital) V, 3.3 (Digital I/O) V 32-Pin

Download ADV7281WBCPZ-M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

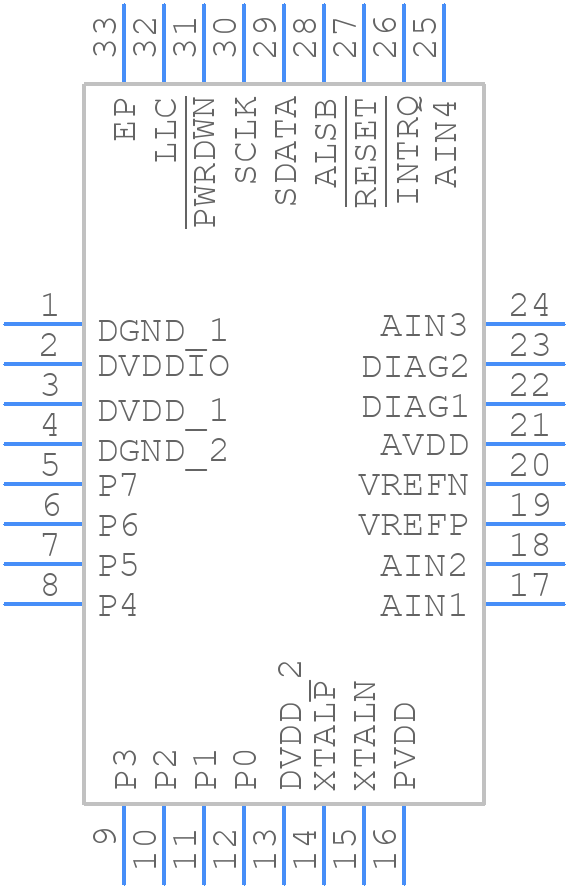

ADV7281WBCPZ-M - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7281WBCPZ-M - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
ADV7281WBCPZ-M - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

ADV7281WBCPZ-M Details

  • Manufacturer Part Number:

    ADV7281WBCPZ-M

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7281WBCPZ-M Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7281WBCPZ-M can be configured for different video input standards using the I2C interface. The specific register settings for each standard can be found in the datasheet or the device's programming guide.
  • The maximum cable length supported by the ADV7281WBCPZ-M depends on the specific video input standard and the quality of the cable. As a general rule, the device can support cable lengths of up to 10 meters for SD-SDI and up to 100 meters for HD-SDI.
  • To troubleshoot issues with the ADV7281WBCPZ-M, start by checking the power supply voltages and ensuring that the device is properly configured. Use an oscilloscope to verify the video input signal and check the device's registers for any error flags. Consult the datasheet and application notes for more detailed troubleshooting guidance.
  • Yes, the ADV7281WBCPZ-M can be used in a multi-channel video application. The device has a single video input, but it can be used in conjunction with other ADV7281WBCPZ-M devices to support multiple video channels.
