ADV7281WBCPZ-MA-R7 - Analog Devices

Description: 10-Bit, 4× Oversampled SDTV Video Decoder Decoder with Differential Inputs

Download ADV7281WBCPZ-MA-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

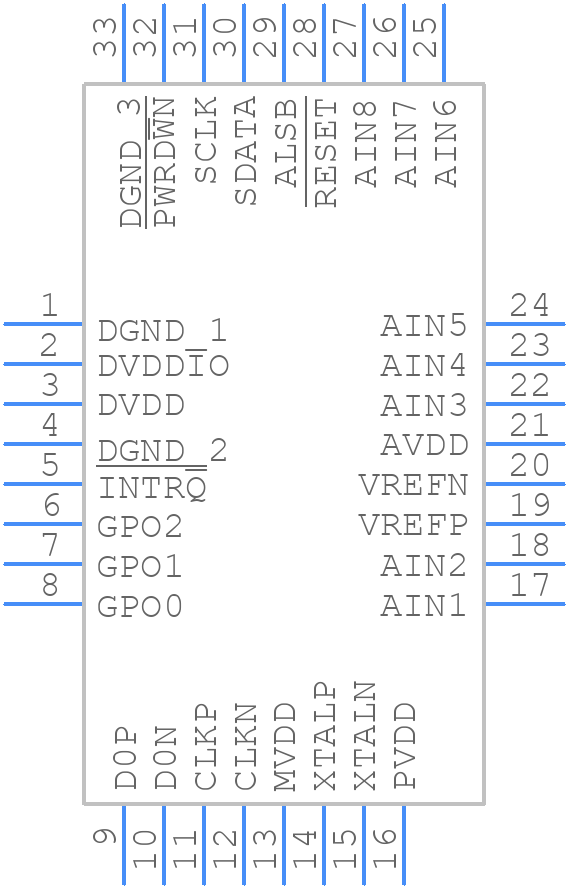

Symbol
ADV7281WBCPZ-MA-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7281WBCPZ-MA-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]_2024-4
click to zoom
3D Models
ADV7281WBCPZ-MA-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP_WQ]_2024-4
click to zoom

ADV7281WBCPZ-MA-R7 Details

  • Manufacturer Part Number:

    ADV7281WBCPZ-MA-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • Moisture Sensitivity Level:

    3

ADV7281WBCPZ-MA-R7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADV7281WBCPZ-MA-R7 evaluation board documentation, which includes guidelines for component placement, routing, and thermal management.
  • The ADV7281WBCPZ-MA-R7 can be configured using the I2C interface to select the desired video input format. The device has a set of registers that control the video input format, and the configuration process is described in the device datasheet and application notes.
  • The maximum cable length supported by the ADV7281WBCPZ-MA-R7 depends on the video input format and the quality of the cable. As a general guideline, the device can support cable lengths up to 10 meters for SD-SDI and up to 30 meters for HD-SDI, but this may vary depending on the specific application and environment.
  • To troubleshoot video signal quality issues with the ADV7281WBCPZ-MA-R7, engineers can use the device's built-in diagnostic features, such as the video signal quality indicator and the error detection flags. Additionally, they can use external test equipment, such as a signal generator and an oscilloscope, to analyze the video signal and identify the source of the issue.
  • Yes, the ADV7281WBCPZ-MA-R7 is designed to operate over an extended temperature range of -40°C to +85°C, making it suitable for use in automotive and industrial applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7281WBCPZ-MA-R7 Overview

Use the download button to access the ADV7281WBCPZ-MA-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADV72, or try a keyword search, such as Color Signal Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
