ADV7281WBCPZ-MA-RL - Analog Devices

Description: 10-Bit, 4× Oversampled SDTV Video Decoder Decoder with Differential Inputs

Download ADV7281WBCPZ-MA-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

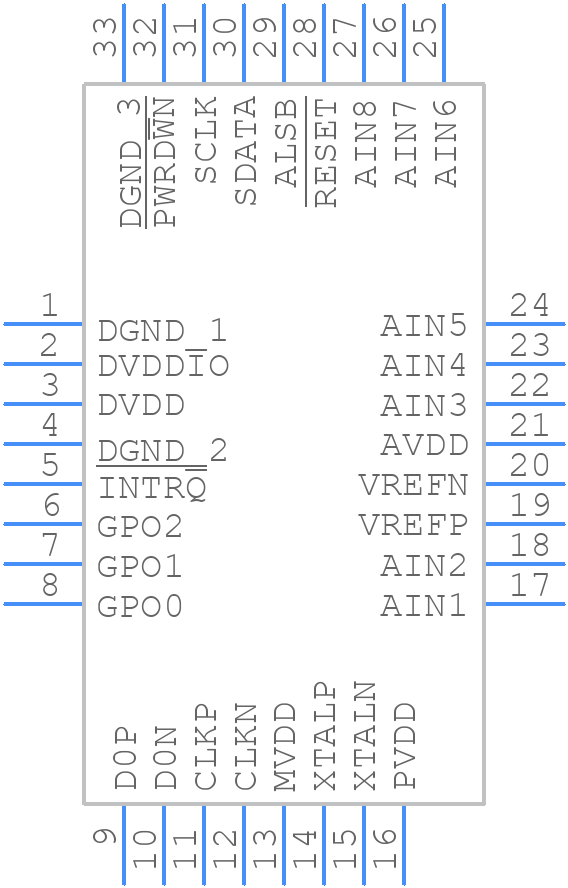

ADV7281WBCPZ-MA-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7281WBCPZ-MA-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
ADV7281WBCPZ-MA-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

ADV7281WBCPZ-MA-RL Details

  • Manufacturer Part Number:

    ADV7281WBCPZ-MA-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7281WBCPZ-MA-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADV7281WBCPZ-MA-RL evaluation board documentation, which includes guidelines for component placement, routing, and thermal management.
  • The ADV7281WBCPZ-MA-RL can be configured using the I2C interface to select the desired video input format. The device has a set of registers that control the video input format, and the configuration process is described in the device datasheet and application notes.
  • The maximum cable length supported by the ADV7281WBCPZ-MA-RL depends on the video input format and the quality of the cable. As a general guideline, the device can support cable lengths up to 10 meters for SD-SDI and up to 30 meters for HD-SDI, but this may vary depending on the specific application and environment.
  • To troubleshoot video signal integrity issues, engineers can use tools such as oscilloscopes and signal generators to analyze the video signal quality. They can also check the device's configuration and settings, as well as the PCB layout and routing, to ensure that they meet the recommended guidelines.
  • Yes, the ADV7281WBCPZ-MA-RL is rated for operation over an industrial temperature range of -40°C to +85°C, and it is also suitable for automotive applications with a temperature range of -40°C to +105°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADV7281WBCPZ-MA-RL Overview

Use the download button to access the ADV7281WBCPZ-MA-RL schematic symbol, PCB footprint, and 3D model.
