ADV7281WBCPZ-MA - Analog Devices

Description: ADV7281WBCPZ-MA , Video Decoder NTSC, PAL, SECAM 1-Channel 10bit- 1.71 → 1.89 V 32-Pin LFCSP

Download ADV7281WBCPZ-MA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

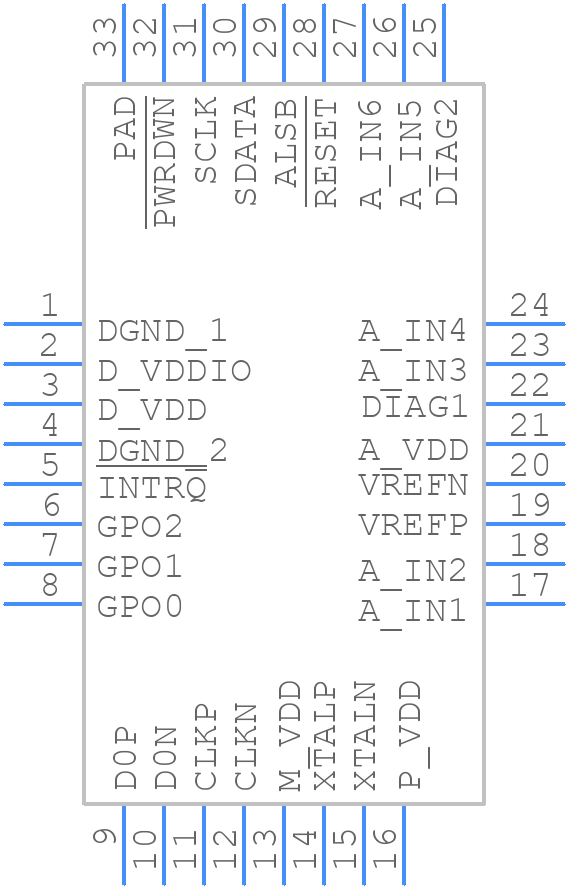

ADV7281WBCPZ-MA - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7281WBCPZ-MA - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADV7281AWBCPZ-M
click to zoom
3D Models
ADV7281WBCPZ-MA - Analog Devices - 3D model - Quad Flat No-Lead - ADV7281AWBCPZ-M
click to zoom

ADV7281WBCPZ-MA Details

  • Manufacturer Part Number:

    ADV7281WBCPZ-MA

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7281WBCPZ-MA Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADV7281WBCPZ-MA involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the ADV7281WBCPZ-MA for low power consumption, use the lowest possible clock frequency, disable any unused features, and use the power-down mode when not in use. Additionally, use a low-power mode for the ADC and DAC, and consider using an external voltage regulator to reduce power consumption.
  • The recommended input signal range for the ADV7281WBCPZ-MA is 0.5V to 2.5V peak-to-peak for the analog video input, and 0V to 3.3V for the digital input. It's also important to ensure that the input signal is properly terminated and that the signal amplitude is within the specified range to avoid signal distortion.
  • To troubleshoot issues with the ADV7281WBCPZ-MA, start by checking the power supply voltage and ensuring that it's within the specified range. Then, check the input signal quality and ensure that it's properly terminated. Use an oscilloscope to check the output signal and verify that it's correct. If the issue persists, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The maximum clock frequency for the ADV7281WBCPZ-MA is 75 MHz. However, the recommended clock frequency is 27 MHz for standard definition video and 74.25 MHz for high definition video.
