ADV7282WBCPZ-M - Analog Devices

Description: ADV7282WBCPZ-M, Video Decoder NTSC, PAL, SECAM 1-channel 10bit- 1.8 V, 3.3 V 32-Pin LFCSP WQ

Download ADV7282WBCPZ-M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

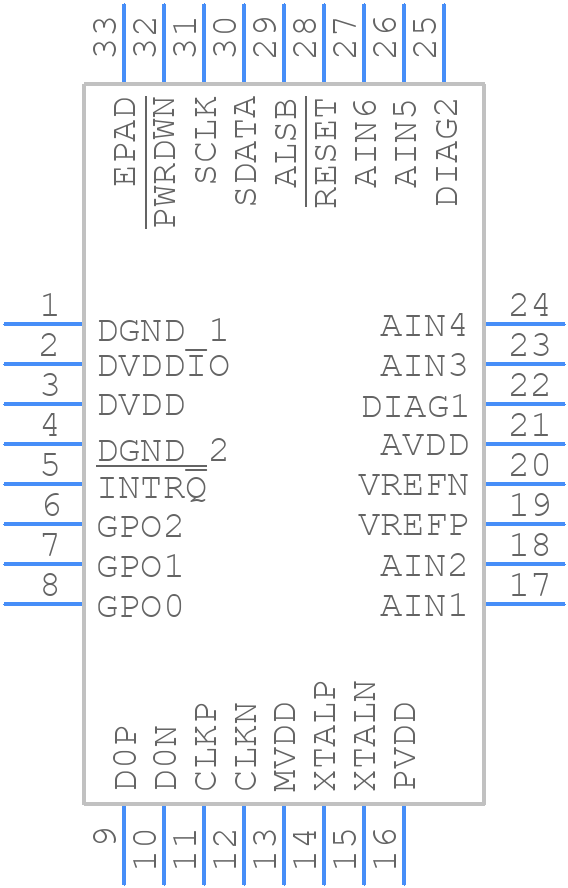

ADV7282WBCPZ-M - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADV7282WBCPZ-M - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-WQ CP-32-12
click to zoom
3D Models
ADV7282WBCPZ-M - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP-WQ CP-32-12
click to zoom

ADV7282WBCPZ-M Details

  • Manufacturer Part Number:

    ADV7282WBCPZ-M

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    COLOR SIGNAL DECODER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

ADV7282WBCPZ-M Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the analog supply (VAA) first, followed by the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADV7282WBCPZ-M can be configured for different video input standards using the I2C interface. The device has a set of registers that can be programmed to select the input standard, such as NTSC, PAL, or SECAM. Refer to the datasheet for the specific register settings for each standard.
  • The maximum clock frequency that can be used with the ADV7282WBCPZ-M is 27 MHz. This is the maximum frequency at which the device can operate while maintaining reliable data transfer.
  • The ADV7282WBCPZ-M has a thermal shutdown feature that is triggered when the device temperature exceeds a certain threshold. When this occurs, the device will shut down to prevent damage. To handle this feature, ensure that the device is properly heat-sinked and that the thermal shutdown pin is connected to a suitable reset circuit.
  • The recommended layout and routing for the ADV7282WBCPZ-M involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Refer to the datasheet for more detailed layout and routing guidelines.
